Tolerance Fit test for all types of printers

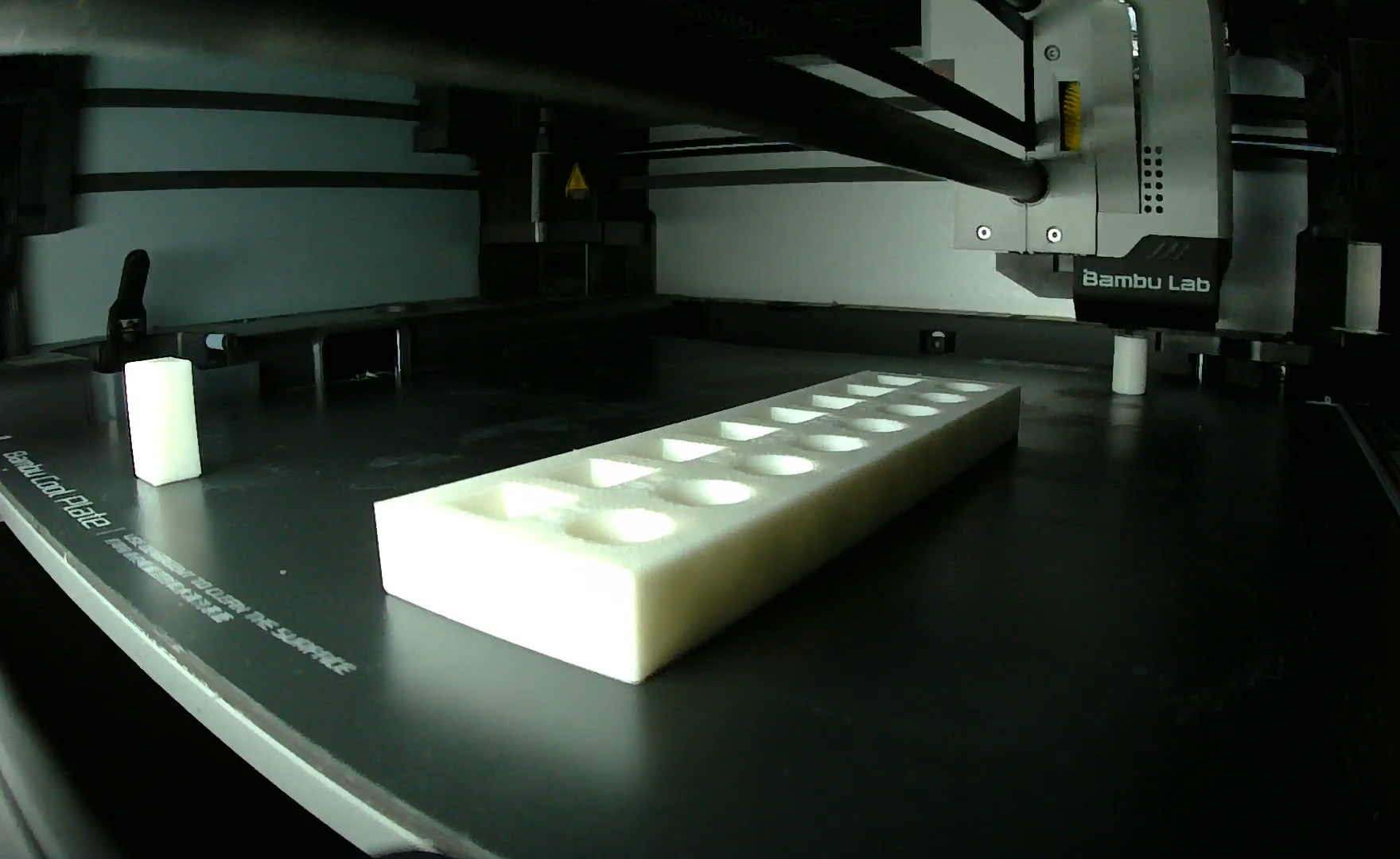

This 3d print will test the tolerances of your printer.
Feel free to use the included profile.
For me personally the best profile was 0.8 or 0.9 (x1c 0.4 nozzle).

The tightest with a block I could get to 0.5 with a 0.6 cylinder

the core is a 10x10mm block and a 10mm diameter cylinder.

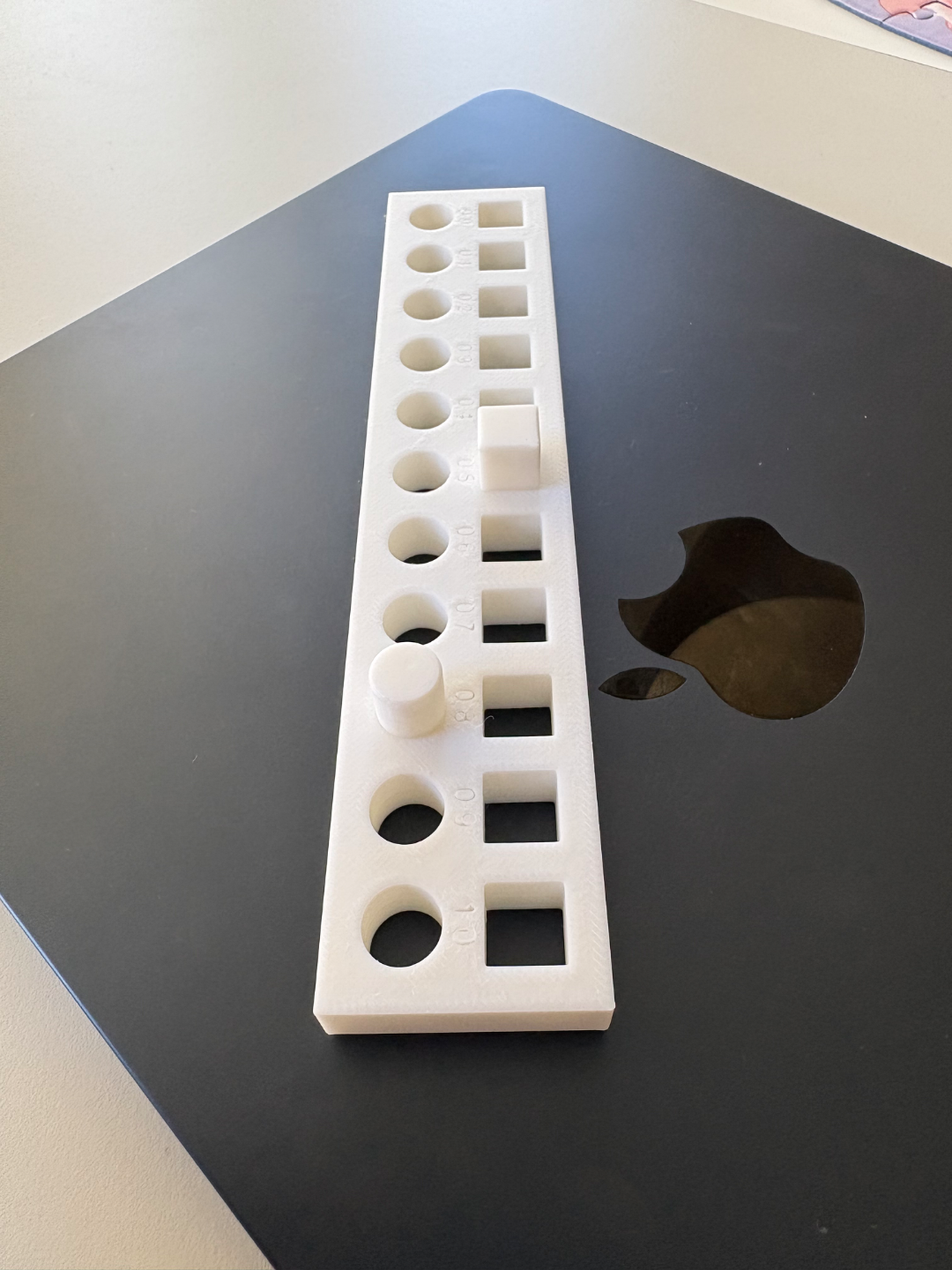

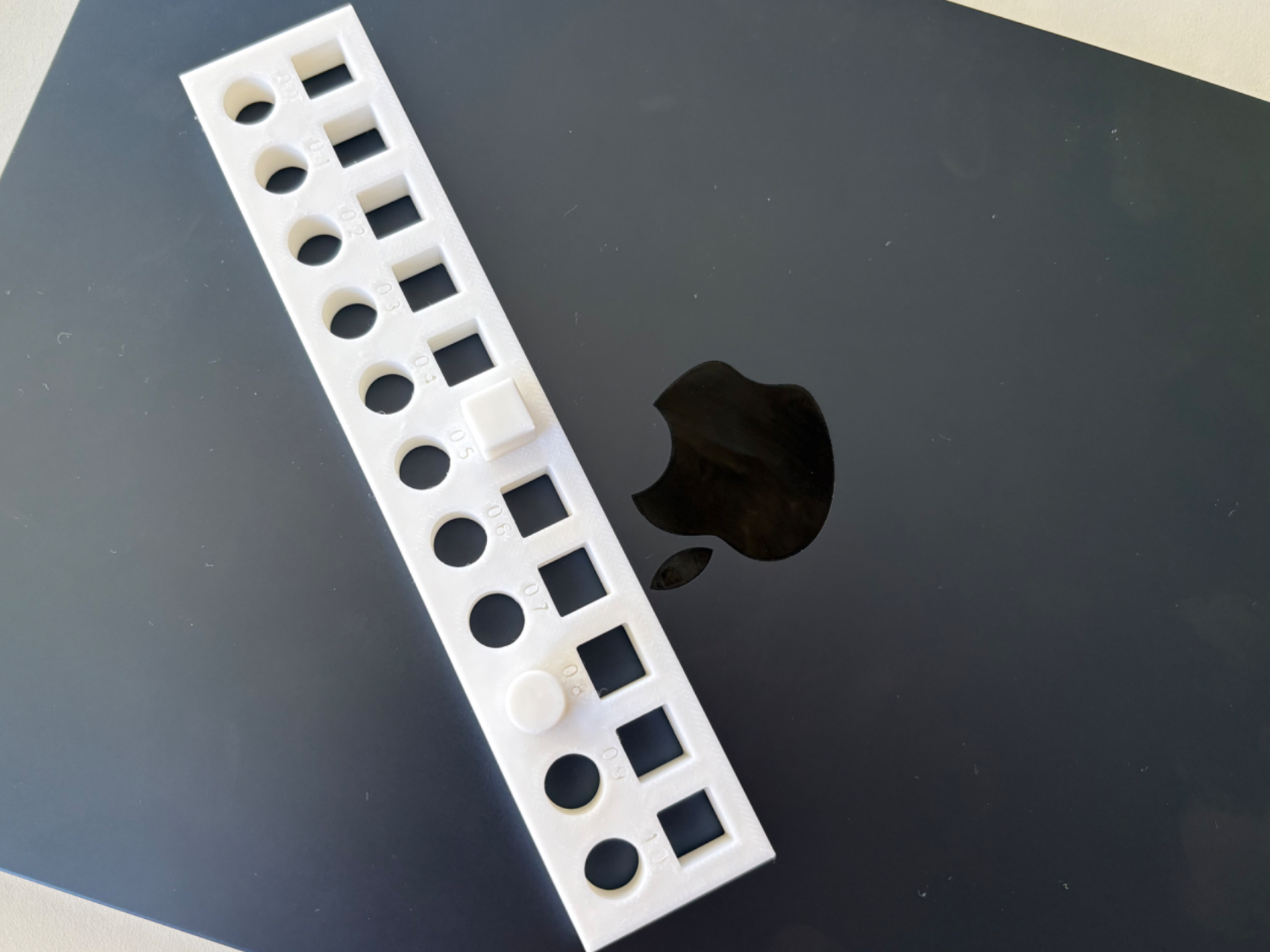

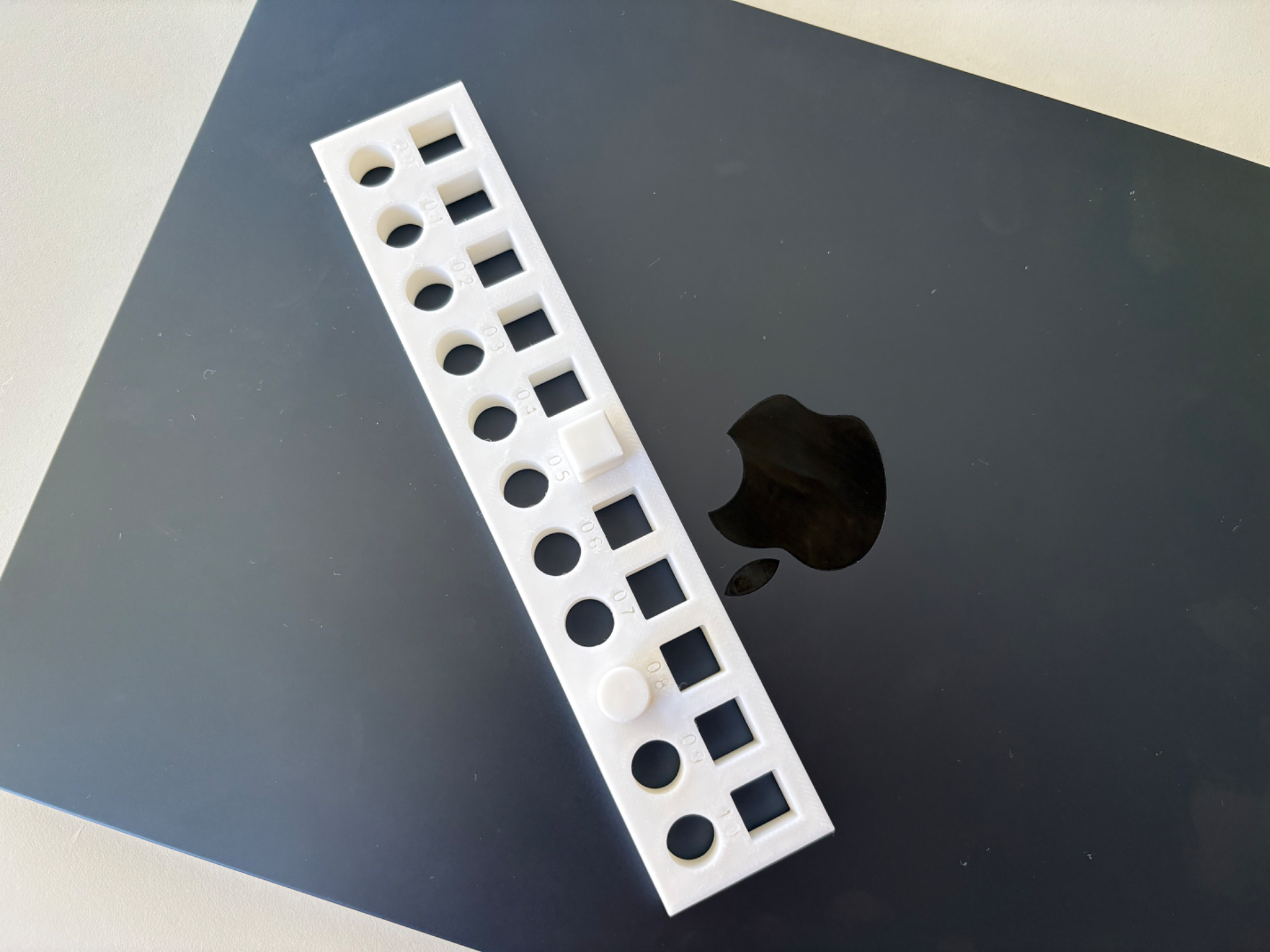

The tolerance plate has ten levels offset by 0.1mm on EACH SIDE.
Starting at 0 so 10x10mm or 10mm diameter continuing up to 10.20x10.20mm.
0 corresponds to zero tolerance i.e. 10x10 or 10mm diameter
0.1 corresponds to 10.02x10.02 or 10.02mm diameter

0.2 corresponds to 10.04x10.04 or 10.04mm diameter
...

1.0 corresponds to 10.20x10.20 or 10.20mm diameter

Design by majnusmartin on MakerWorld (license: CC0).
