Tolerance Test (Long Version)

Tolerance Fitment Test - Long Version

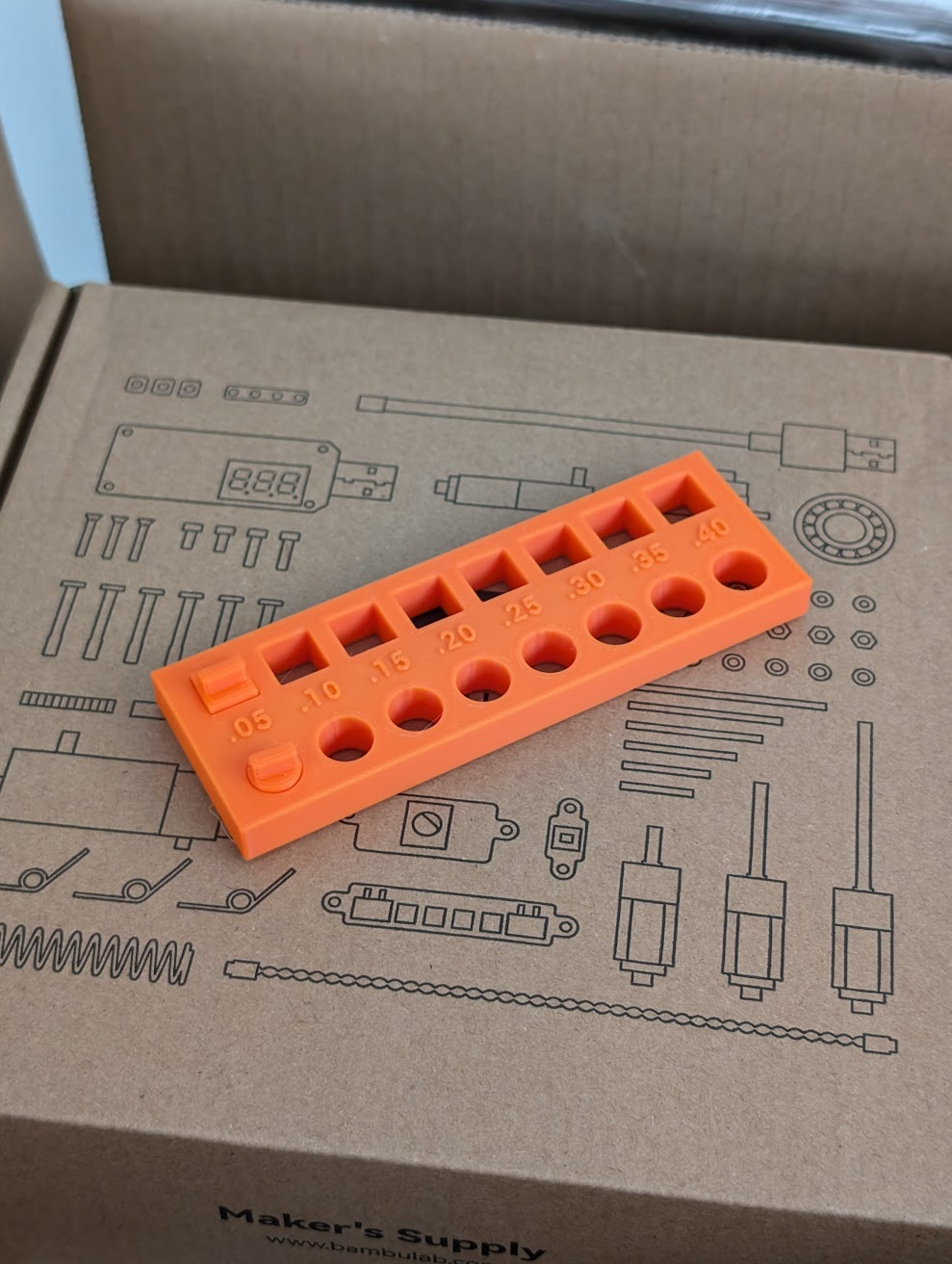

0.05 to 0.40 mm tolerance test.

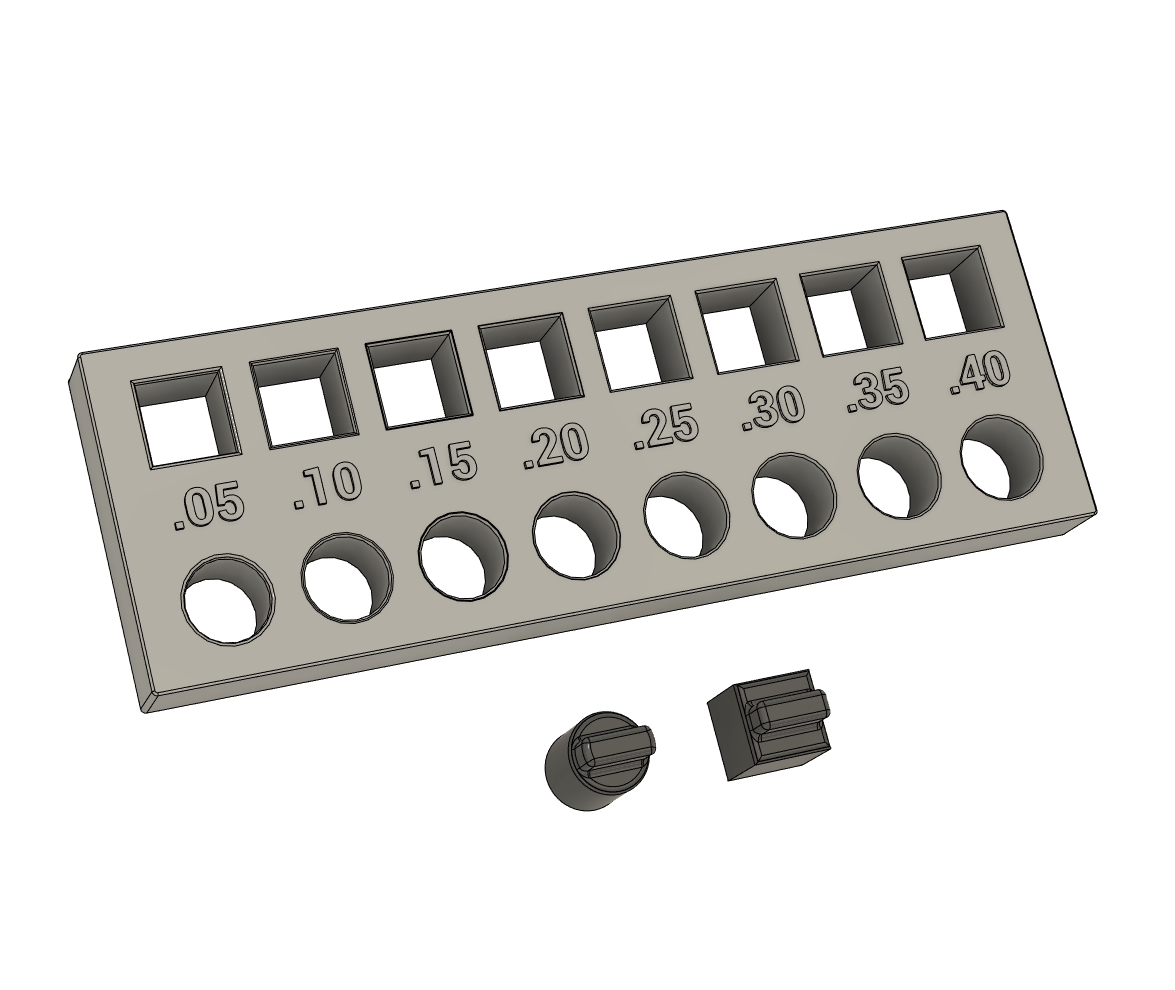

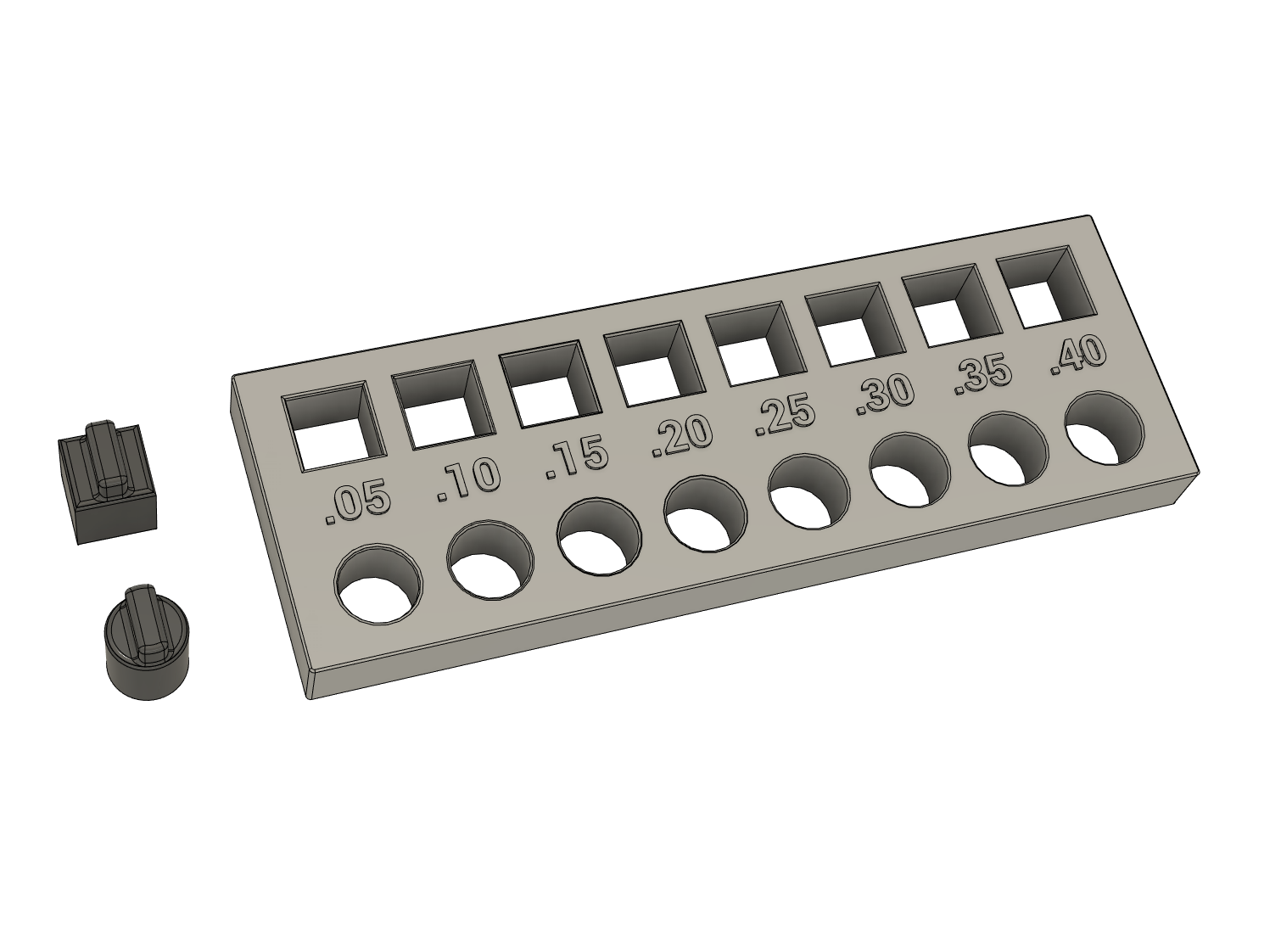

Try insert the round and square pegs into each hole and see how good your printer's tolerances are.

Note: Tolerances are for each mating surface. E.g. For 0.1mm, there is 0.1mm gap on all sides of the hole, and the holes are 10.2mm wide.

Note: The pegs are 10mm wide.

Short Version: https://makerworld.com/en/models/22224#profileId-20163

Design by kvnper on MakerWorld (license: BY-SA).
