Topology optimized Shelf Bracket | 200mm Depth
$6.99
Sale price
$6.99
Regular price
- Made to order — 3D printed after you buy
- Free shipping on orders over $25
- Quality checked before it ships
- Questions? Contact us · Returns

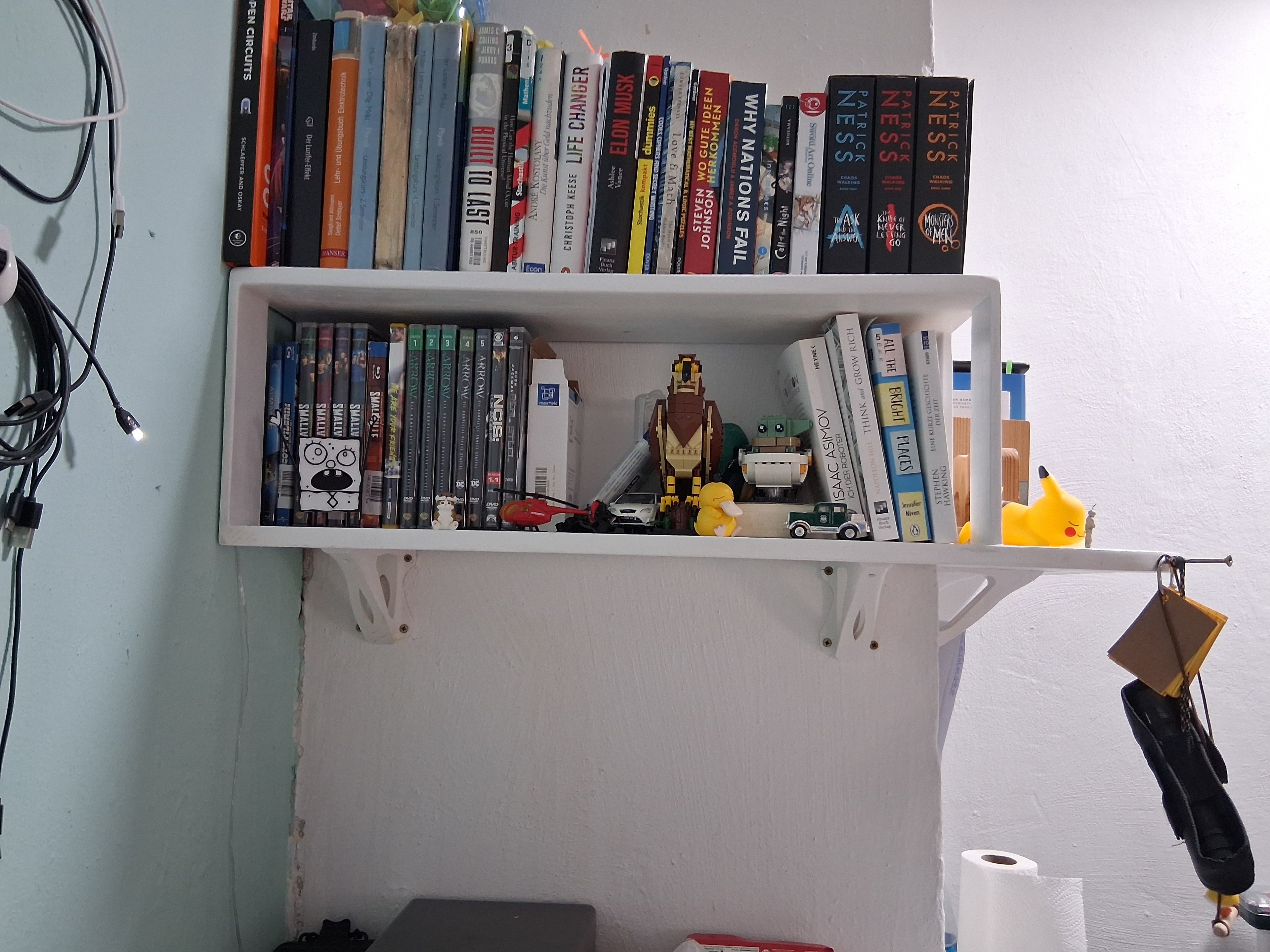

This is a topology optimized shelf bracket, designed for 200mm deep shelves. It offers a great balance of strength and light weight, with a unique organic look that comes from its material-efficient engineering.
A modern and functional solution for your shelving projects.
Key Features:
- Topology Optimized: Strong where it needs to be, light everywhere else.
- 200mm Depth: Suitable for standard 20cm deep shelf boards.
- Unique Look: Adds a modern, technical touch to your space.
- Material Efficient: Prints relatively quickly
Printing Recommendations:
- Material: PETG or ASA recommended for best strength. PLA or PLA+ can be used for lighter loads or if appearance is the main focus.

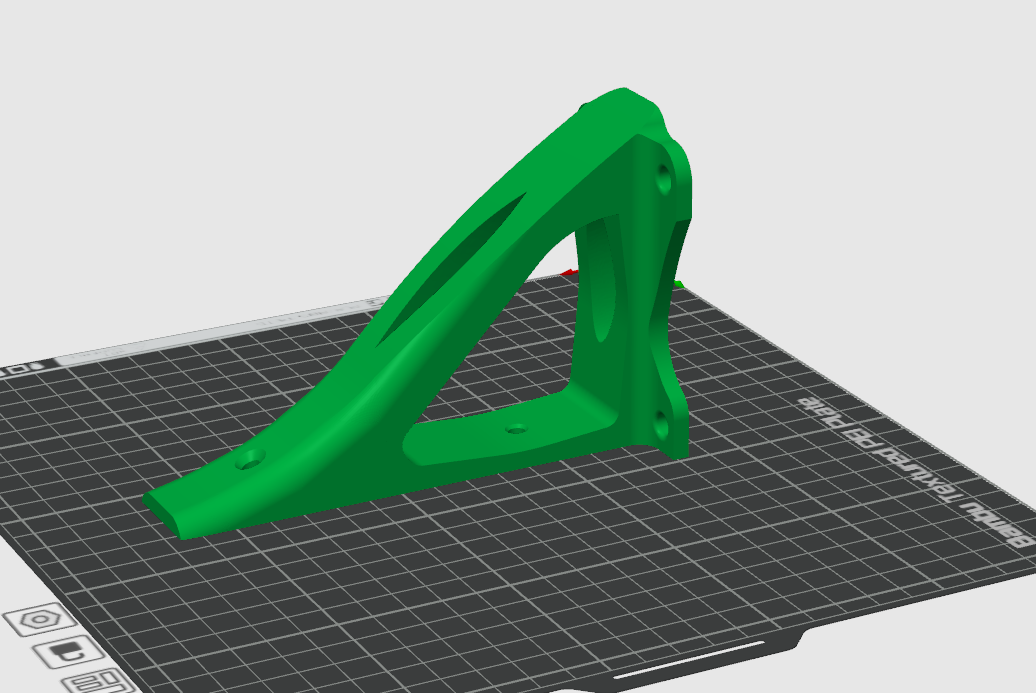

- Orientation: CRUCIAL! Print it orientated like in the picture for maximum strength. This aligns layers properly against the load.
- Walls/Perimeters: 3-4 walls.
- Infill: 25-40% with a strong pattern (e.g., Gyroid, Cubic, or Triangles).
- Layer Height: 0.16mm - 0.2mm.
- Supports: Print with organic Support on buildplate

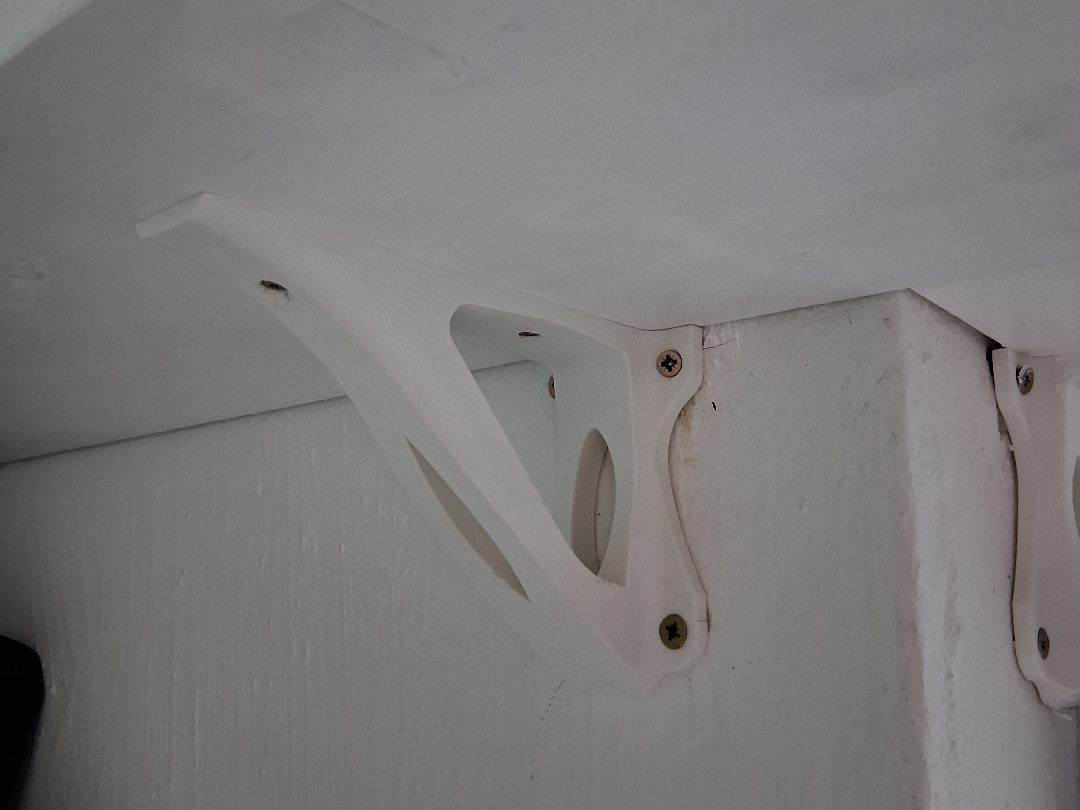

- Mounting: Designed for Self-tapping screws M3-M5, when needed with Rawlplug
Design by RedFeather on MakerWorld (license: BY-SA).
