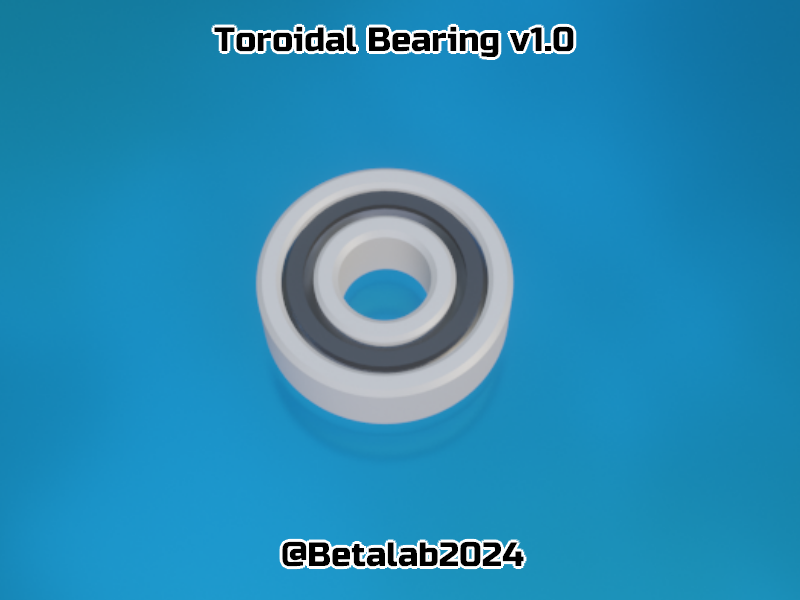

Bearing with toroidal insert
I have encountered several problems with 3D printed ball bearings, such as imperfections in the balls that cause a lot of friction, in many cases sticking to the walls, etc.

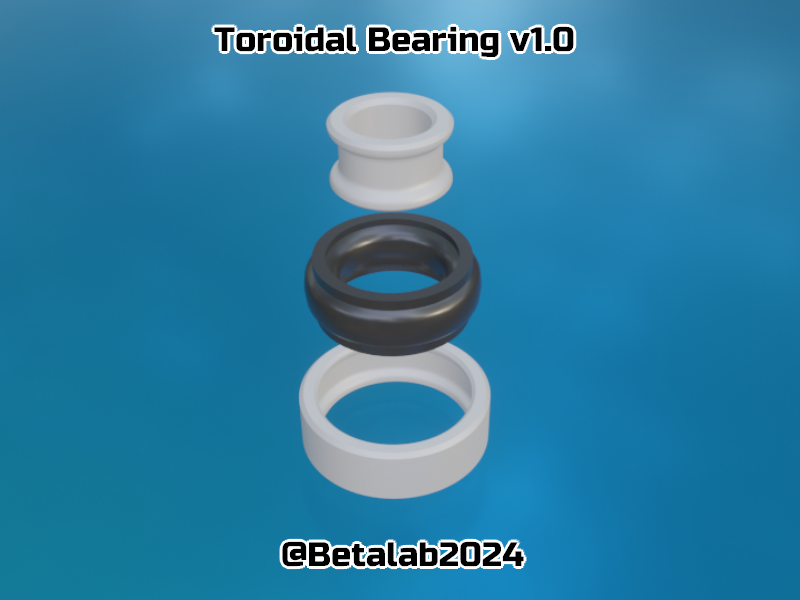

I therefore thought of reducing these problems by replacing the balls with a toroid, so that the bearing is formed from only 3 parts.
I consider the result satisfactory if the intention is to make
fully 3D printed designs, but obviously the performance of a metal ball bearing cannot be matched by a 3D printed plastic bearing.

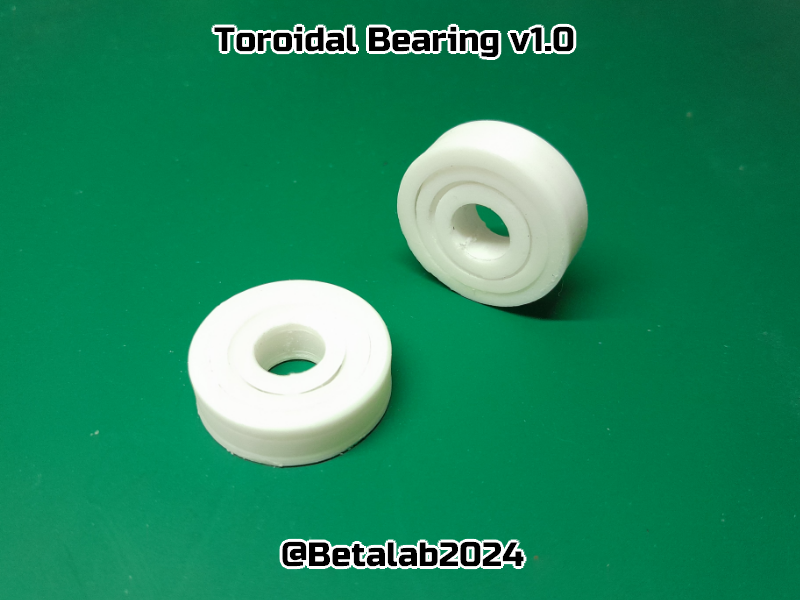

The bearing I printed is type 608
D22 mm d 8mm H 7mm
You can scale the dimensions of the bearing to make it bigger, but I do not recommend reducing the dimensions as the space between the parts would be too small.
If you decide to print it, please leave me feedback.
Thank you!
Design by Betalab3D on MakerWorld (license: CC0).
