Transforming Chess Pawn to Queen - v1.0-v2.5

This is my collection of my version 1.0 through currently version 2.5 of my transforming chess pawn.

If a folder only has one or two files, it is because I just included the ones I updated.

Onshape Document https://cad.onshape.com/documents/3b339f5abb5f9b8128b55c5b/w/dbf7afbbedd1f47ffcc0ba2a/e/5e007dc153042dabe0878ec8?renderMode=0&uiState=67c10babc276cb754ad6654f

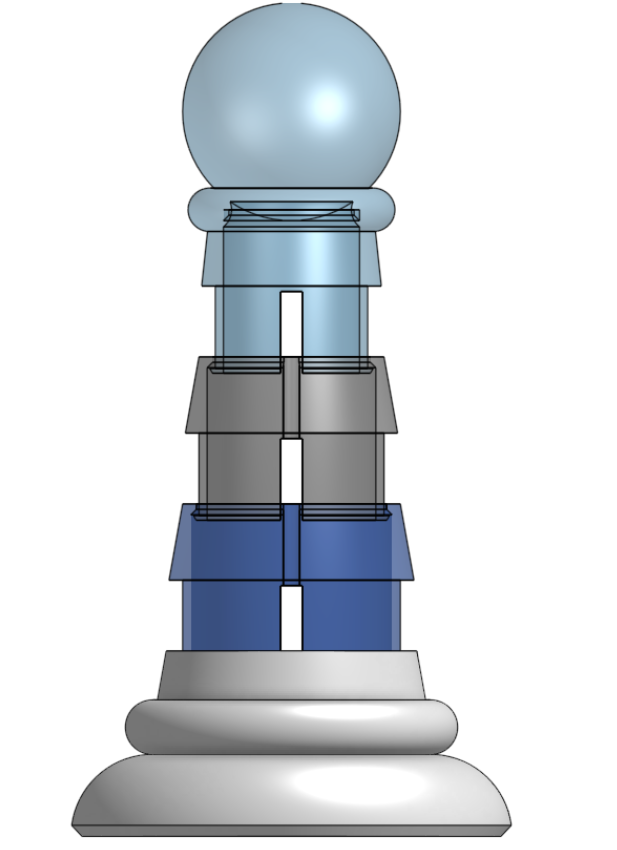

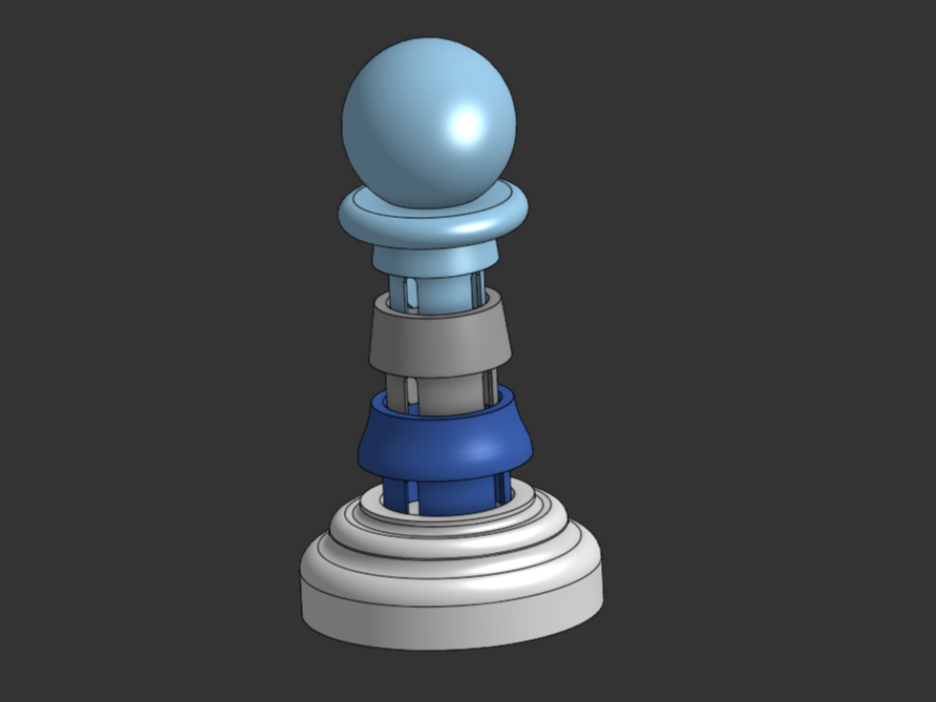

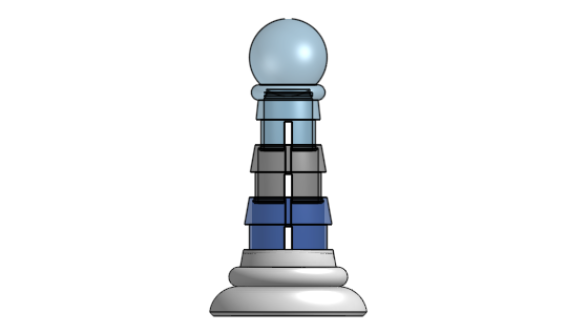

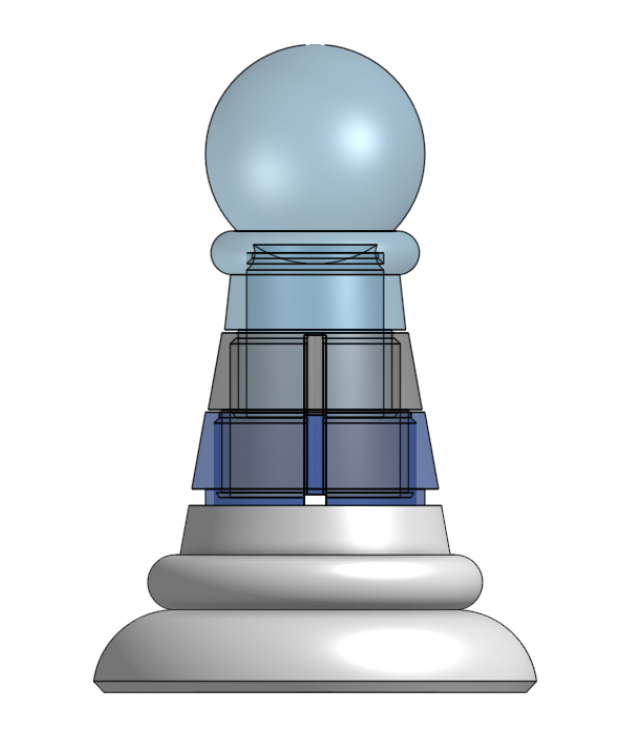

v1.0 - basic main body

v2.1 - redesign

v2.2 - shaped bottom

v2.3 - shaped top

v2.4 - started design of spring pin

v2.5 - latch and spring pin designed, prototype complete

Assembly instructions:

nozzle size: 0.25 or smaller

Layer Height: small

Supports: tree

bed adhesion: brim

BOTTOM / LATCH PIECE INSTRUCTIONS:

glue in 8*1.5 magnets to the bottom side of the latch piece, the latch piece should be printed on its sides

for layer height 0.08mmm:

• print latch and insert piece
• at layer height 48 make a pause to superglue down the latch
• at layer height 87 make a pause to place insert piece - bevel side up
• finish printing

for layer height 0.12

• print latch and insert piece
• at layer height 32-33 make a pause to superglue down the latch
• at layer height 58 make a pause to place insert piece - bevel side up
• finish printing

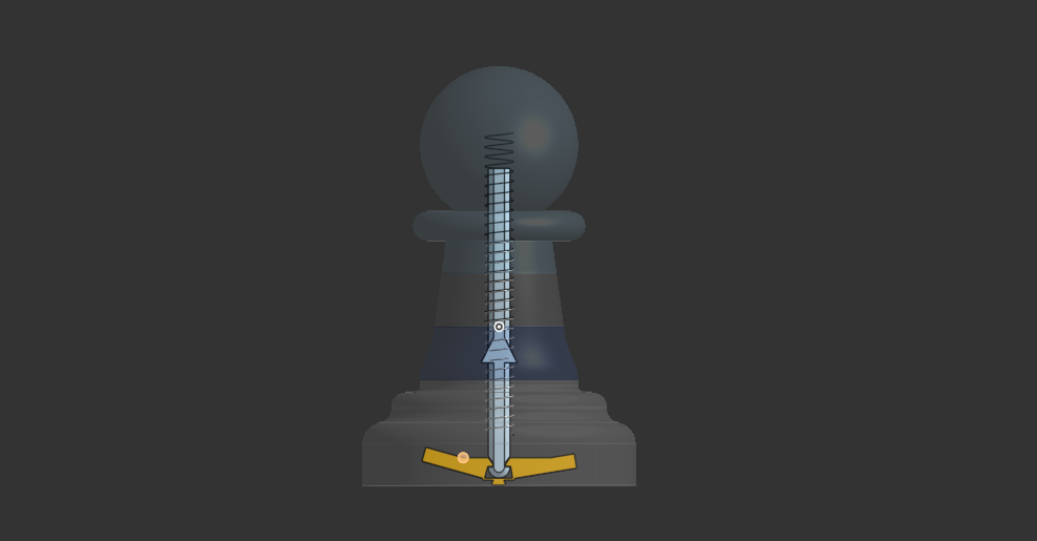

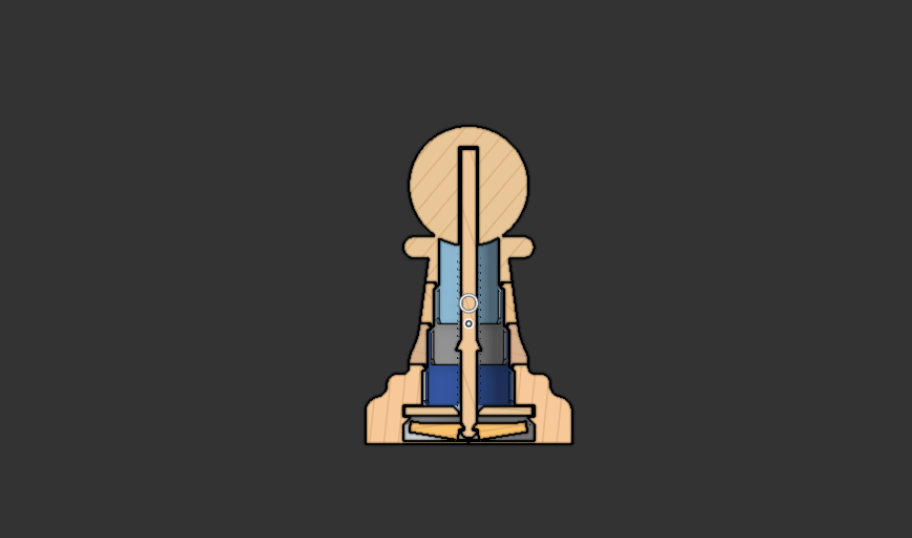

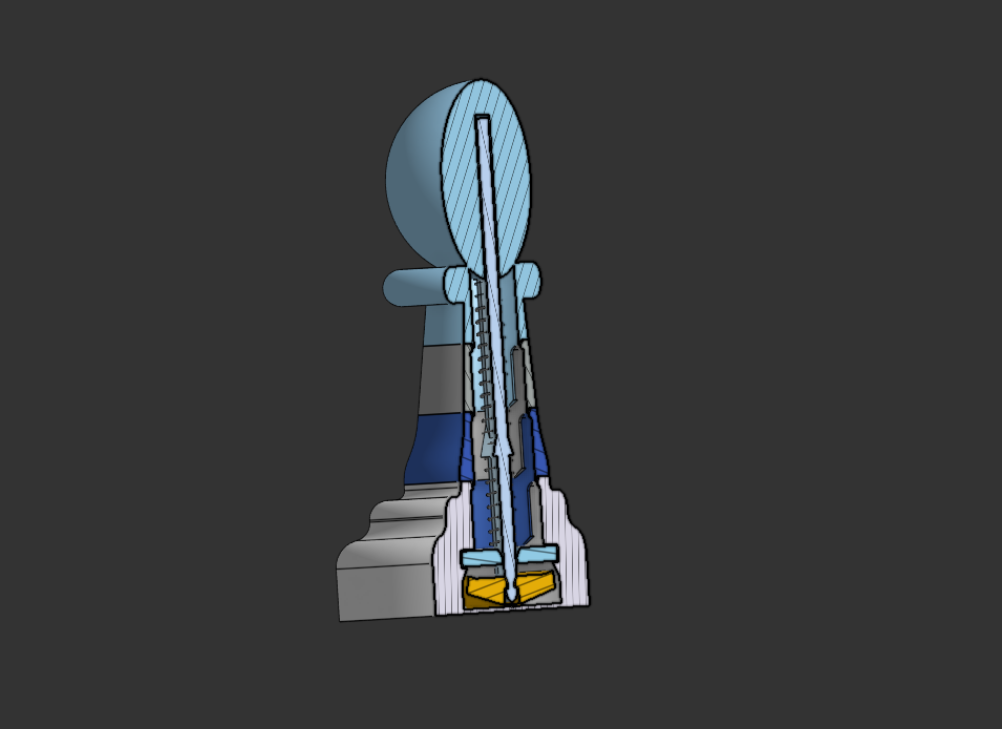

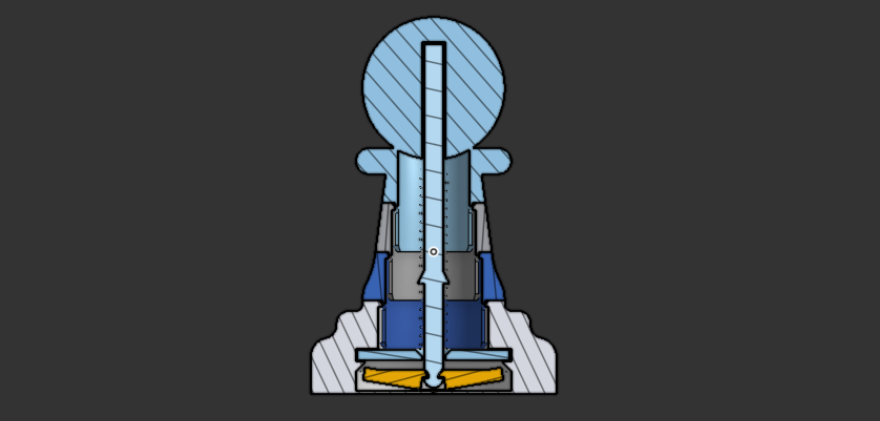

TOP PIECE / SPRING PIN INSTRUCTIONS:

• print spring pin laying down for best strength
• super glue the spring pin into the top piece

FINAL ASSEMBLY:

• clip the layers together, and put a standard ball pen spring on the bottom of the spring pin

Design by Cinnabun on MakerWorld (license: BY).
