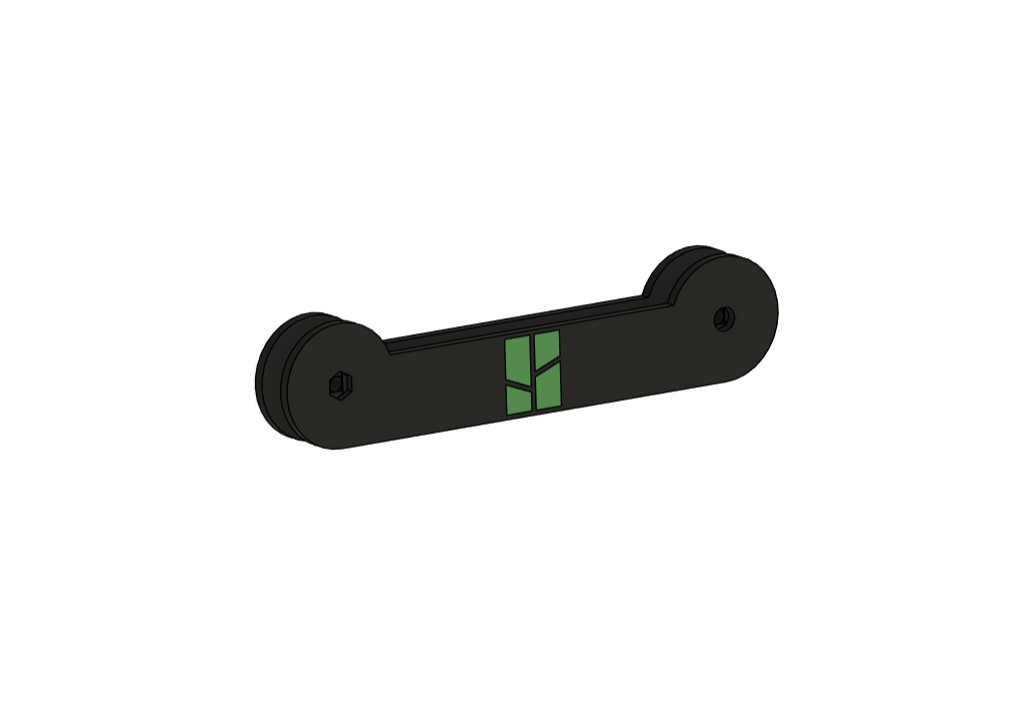

TUSH remake. The ultimate spool holder V2

• 23/09/23 V2 is released!

  I have considered the majority of your feedback and made the necessary adjustments. It now has a few upgrades compared to V1:

  • Better fitting with the bearings.
  • M3 holes so bolts can be used for additional security.
  • Slightly bigger base for better stability of the spool.
  • Bolts holes are created in so they don't require supporting material while printing.
• I highly recommend printing in PETG to have a more durable spool holder

• Parts needed for assembly:

  • 2 x M3x10mm hex bolt
  • 2 x M3 nut
  • 2 x 608 skateboard bearing

  I use it to use up spools that won't fit in the AMS.



Remake of the TUSH spool holder.

Added the Bambu lab logo in it but also changed the locking of the two parts.

The parts can be pressed together with regular pliers.

The model uses standard 608 skateboard bearings.

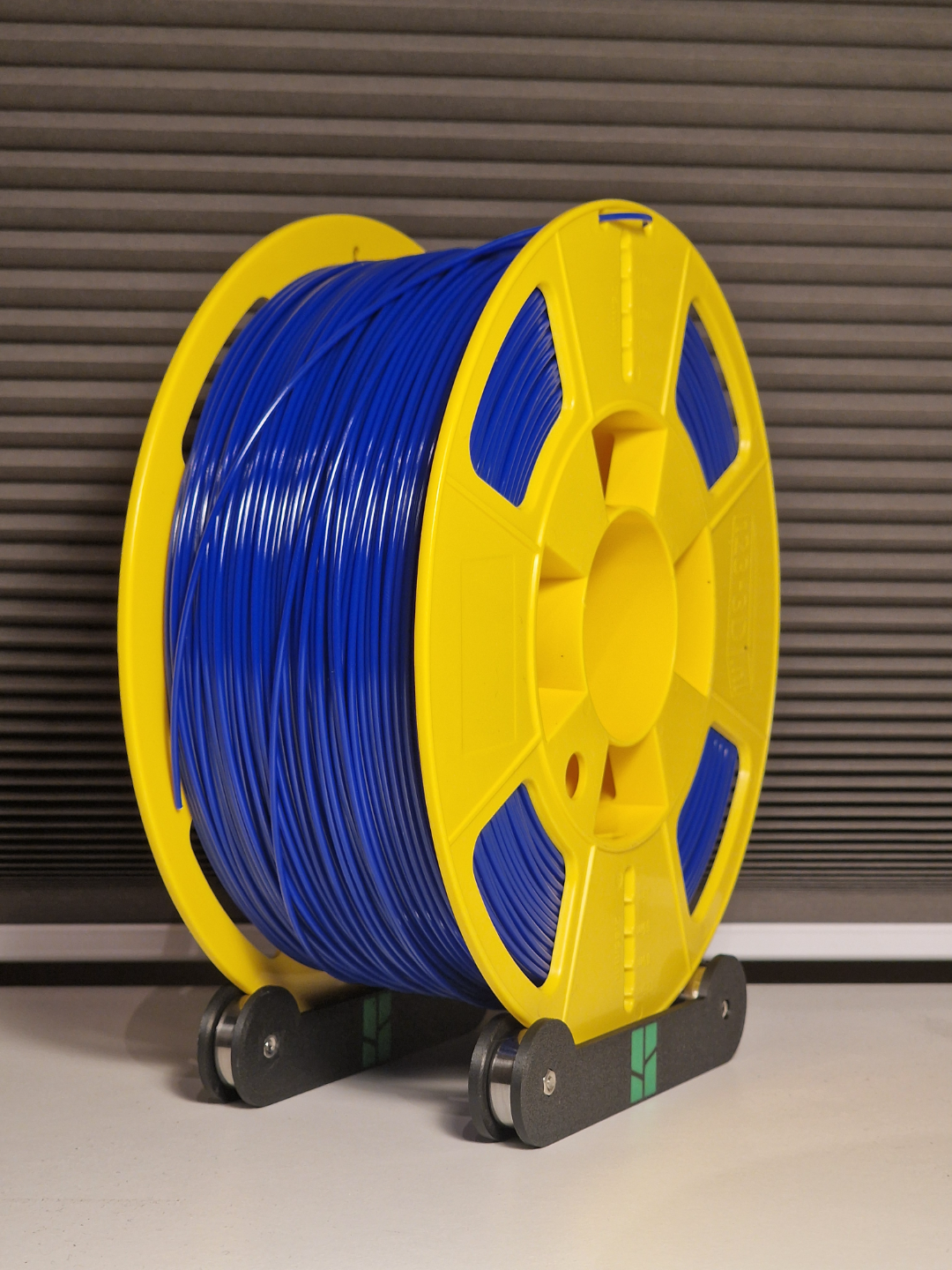

Very useful while respooling filament or when you want to use other spools next to your printer.

Design by B printer on MakerWorld (license: BY).
