Universal M5 Hex Bolt Joint (GoPro Style)

A versatile, universal joint (hinge) part designed to be integrated into your own 3D models. Simply merge this part with your existing objects in your CAD software or slicer to add an adjustable, lockable articulation point.

⚙️ Features

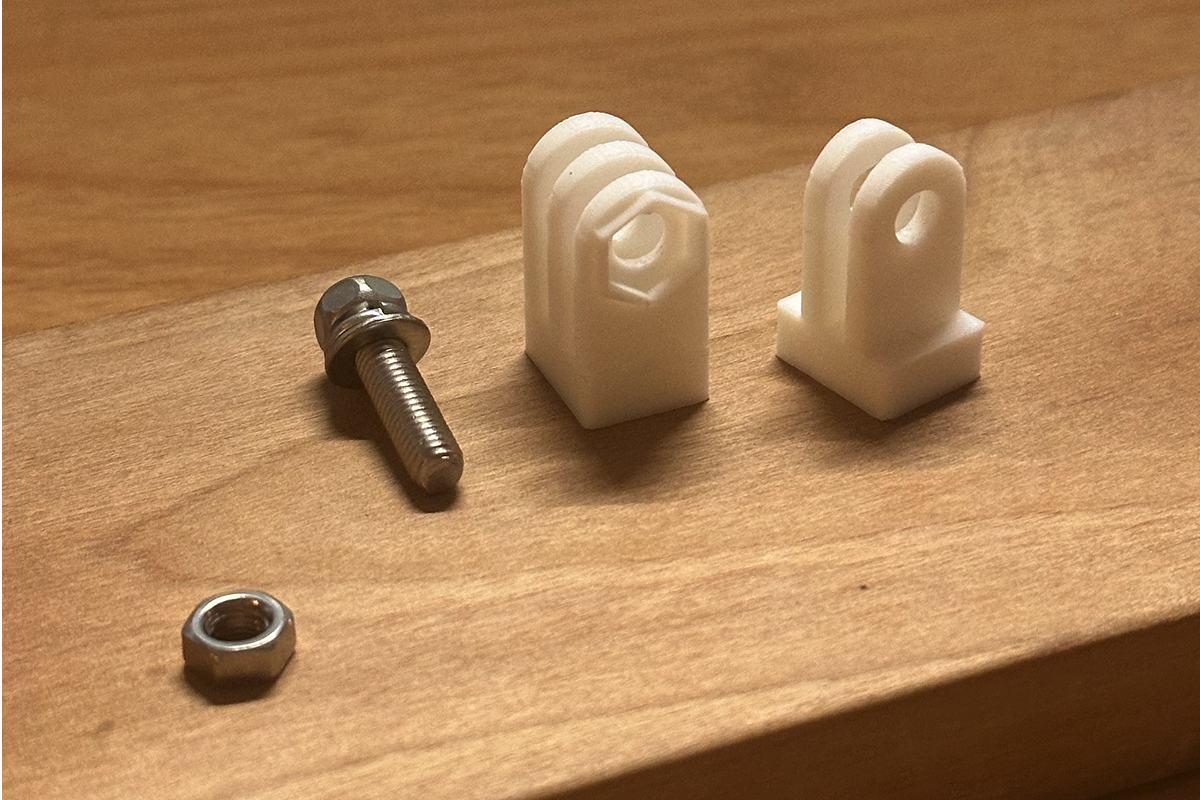

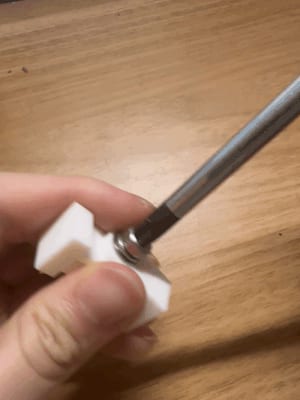

• Embedded Hex Nut Design: One side of the mount features a perfectly sized recess for an M5 hex nut. This prevents the nut from spinning, allowing you to easily and securely lock the joint in place just by tightening the bolt—no wrench required.
• Perfect for Remixing: Attach or merge this joint to your custom stands, camera mounts, robotic arms, or any project that needs a strong pivot point.

🔧 Required Hardware

• M5 x 20mm Hex Head Bolt
• M5 Hex Nut
• Washer (Optional) (Designed to perfectly fit standard M5x20 hex bolt/nut sets, such as those from uxcell.)

💡 Print Settings

• Supports: No supports needed if oriented correctly.
• Tip: Increase wall loops/perimeters for extra strength when tightening the bolt.

Design by shinji on MakerWorld (license: BY).
