V2 - Wood Light - 110mm Lithophane Cube Frame

**** VERSION 2 - Uses a different light source***

This is a remix of the cube frame here:  https://makerworld.com/en/models/696973-cube-lamp-lithophane#profileId-625974

I needed a smaller size, around 110mm, so I messed around (and messed up some, lol) until I finally came up with something that worked perfect.

**IMPORTANT:  Enable Supports and put MOUSE EARS on all of the pieces to avoid having distorted corners.

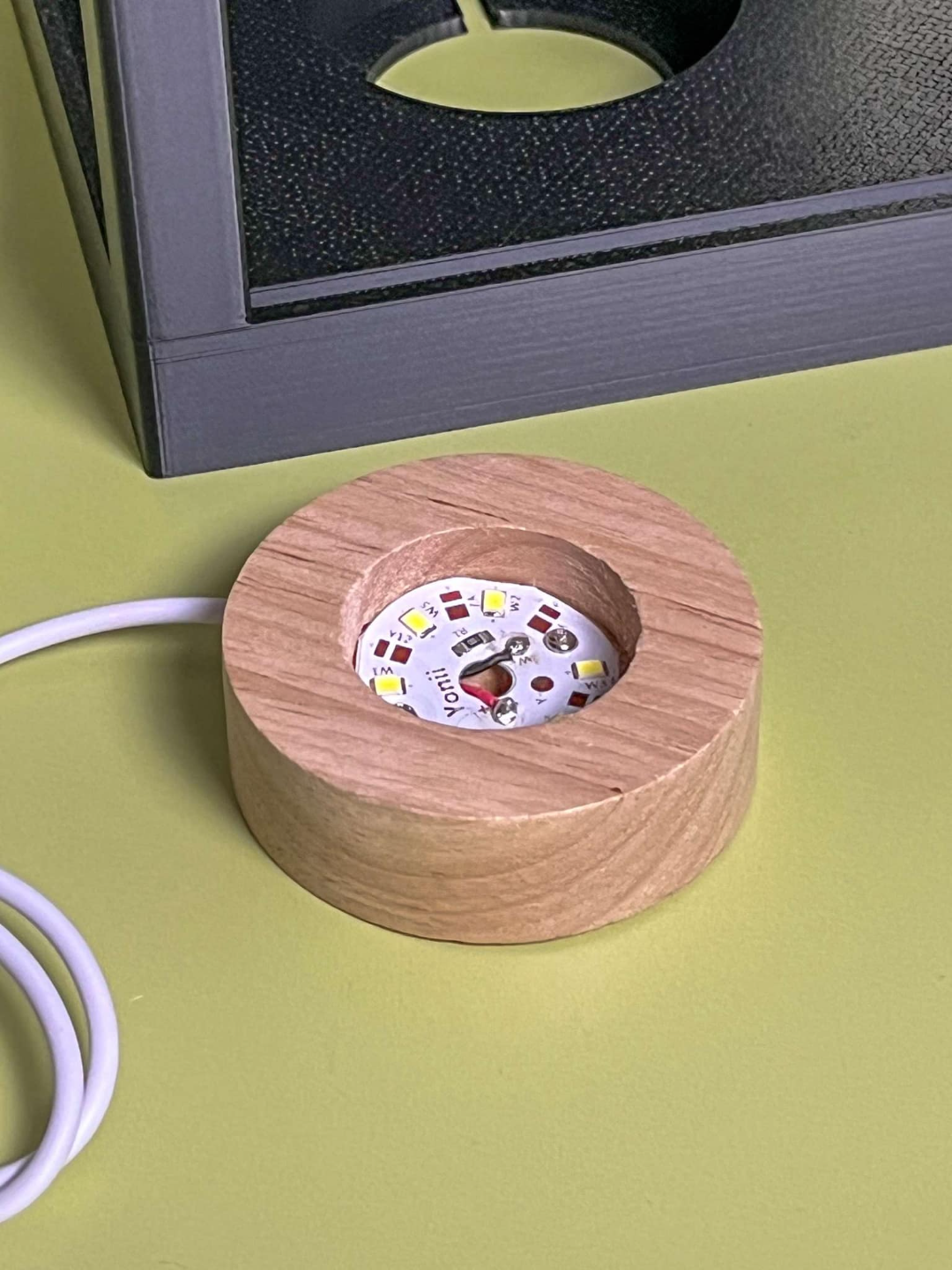

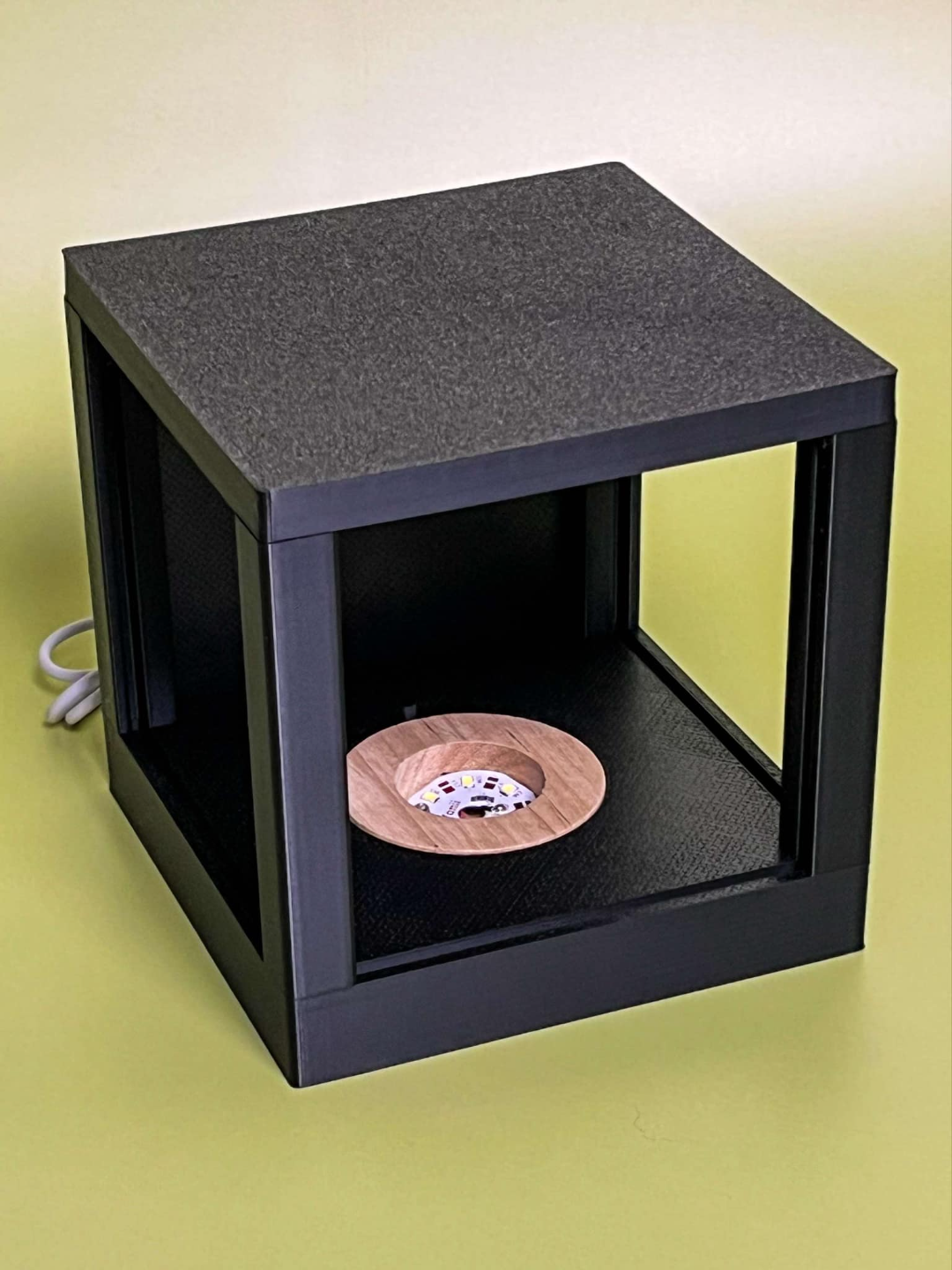

>>> This lamp frame uses a light that is ordered from Ali Express or Shein - I found these when I was having a problem getting the standard lights, and they were a very good price (about $3 each).  They are 1mm wider and significantly taller, so I had to make adjustments to the bases that I was using on my different lithos.  On Aliexpress, search “Wood light base” or a variant of them.  They come in different sizes bases (the light part is exactly the same size on all of them, but the wood part is not).  You want the one 6CM size for this.

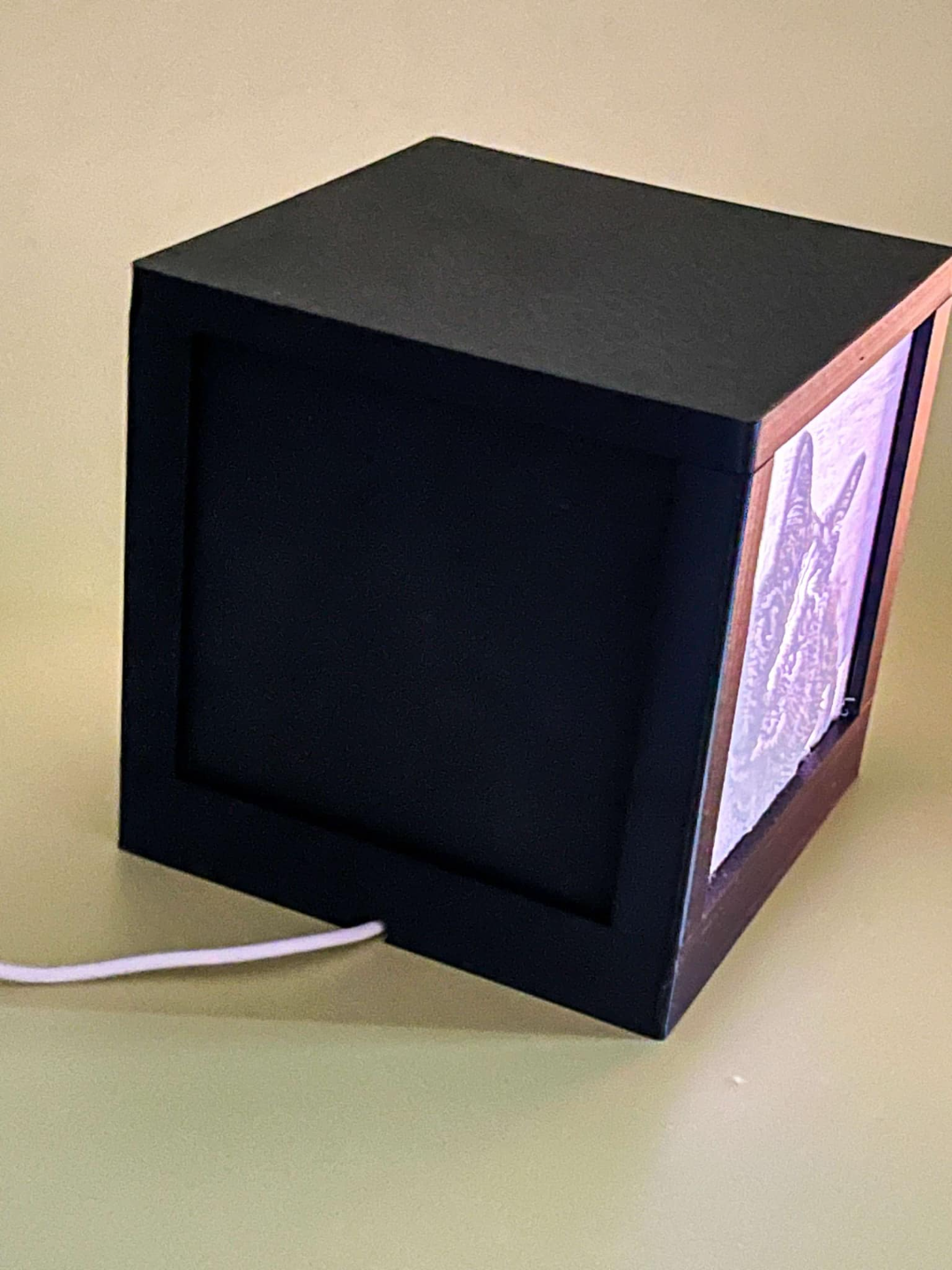

The top snaps on snugly, and I've included a blank panel that I print for the ‘back’ of the light - this could easily hold a 4th picture.

My lithos are generated at itslitho.com - here is a link to the profile that I use that fits these frames (Litho is 110mm x 104mm)

https://tool.itslitho.com/profile/64184be4


Design by The Erin on MakerWorld (license: BY-SA).
