This is a fixed version of the Watchy Invader Case Remix by Dooganar, which is based on the Invader case by SQFMI.
It's designed to work with some of the Watchy clones found on Aliexpress, like this one:
https://www.aliexpress.com/item/1005008618027792.html

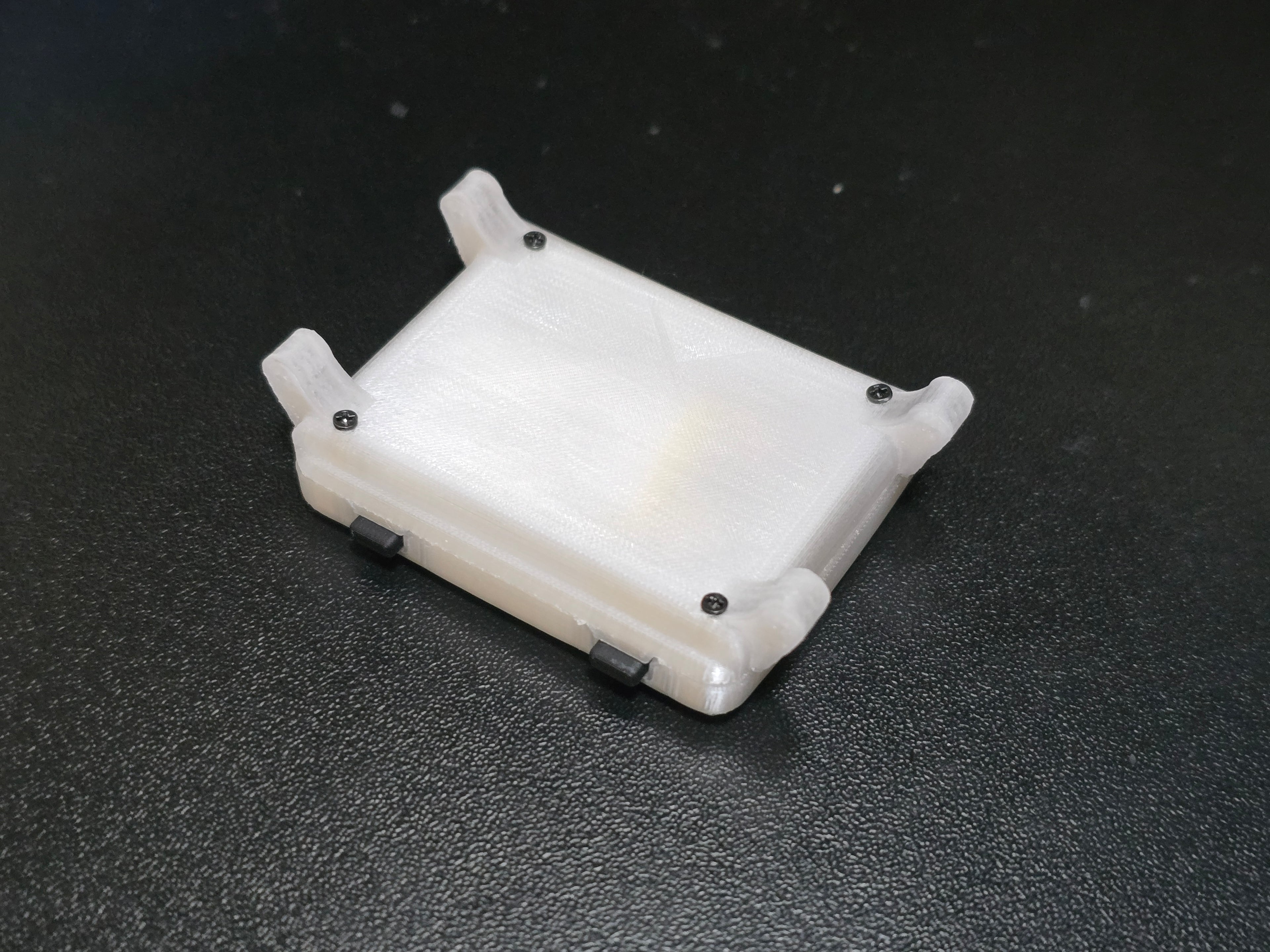

I decided to make some small changes to fix the curved bottom case, and I'm uploading it here with the same Public Domain license.

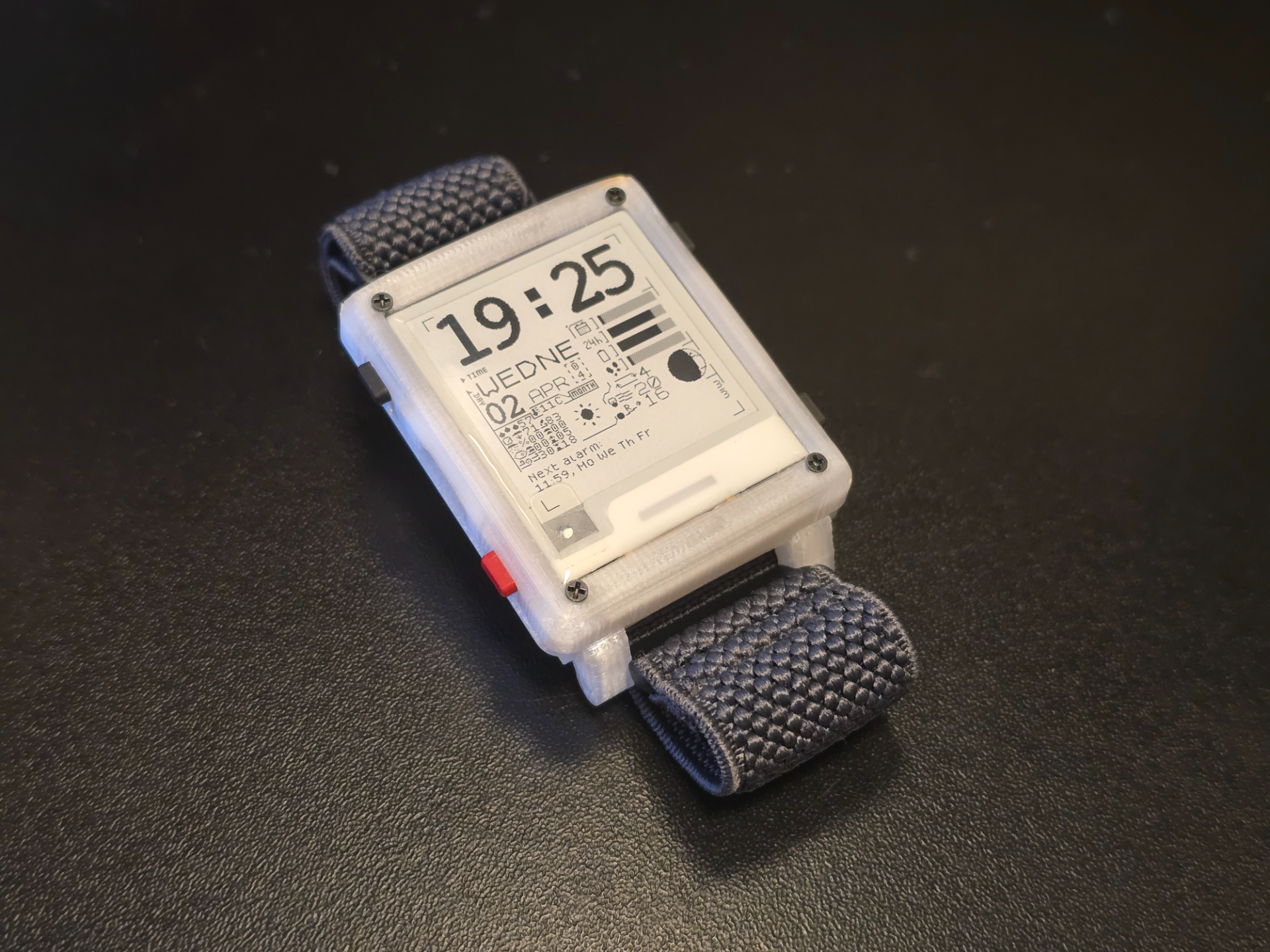

For assembly, I recommend to put the shorter screws on the base, then the brass separators, then put the circuit board with the battery underneath, then close the top with the longer screws. Use a 22mm strap with this case.
I recommend to use a 0.2 nozzle. I personally printed mine with translucent PC, which is a strong material, comfortable on the skin, easy to print with 0.2 and it allows for the LED indicator of the ESP32 board to be seen. The buttons are PLA, good range of colours and dimensional accuracy, also printed with a 0.2 nozzle.
Design by glaucon1984 on MakerWorld (license: CC0).
