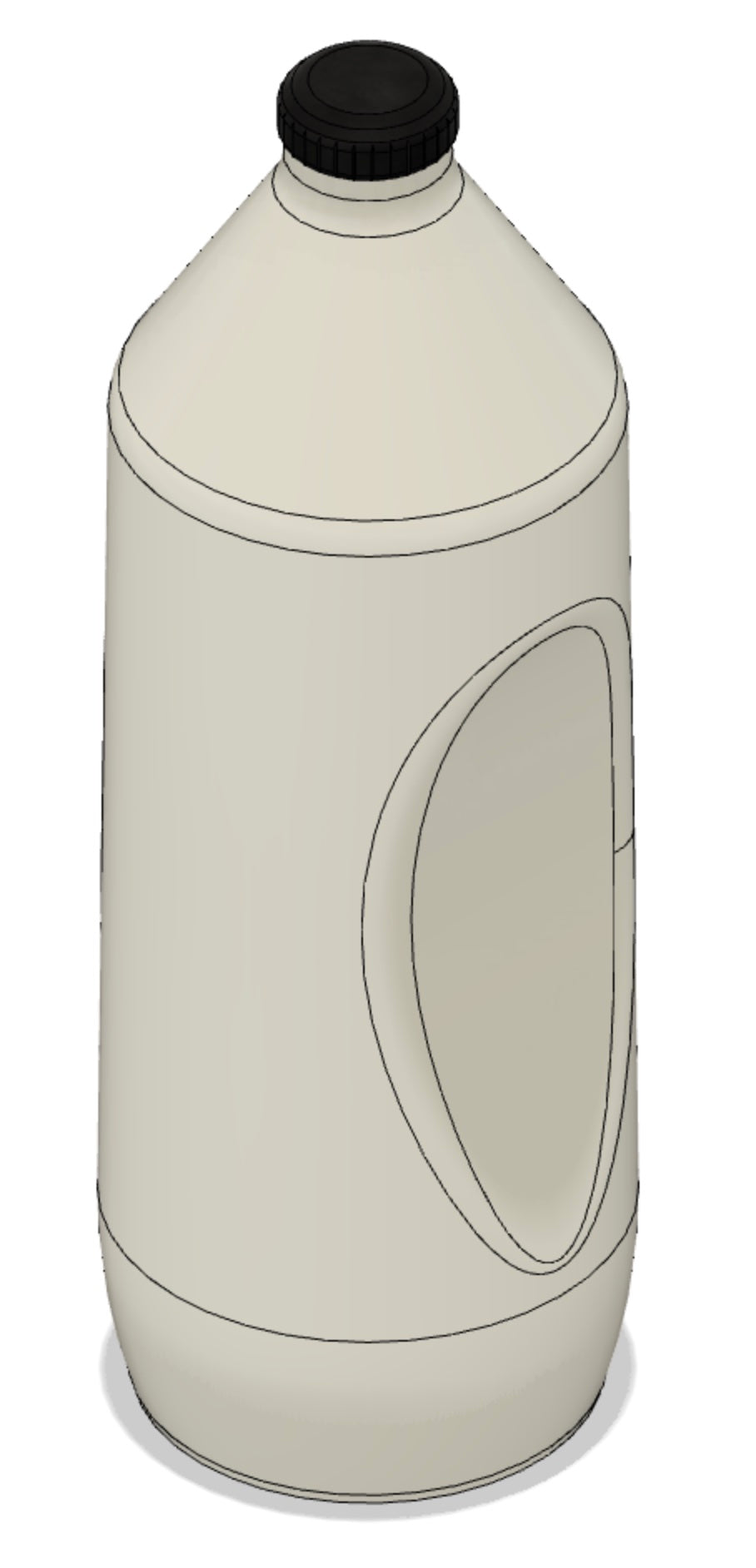

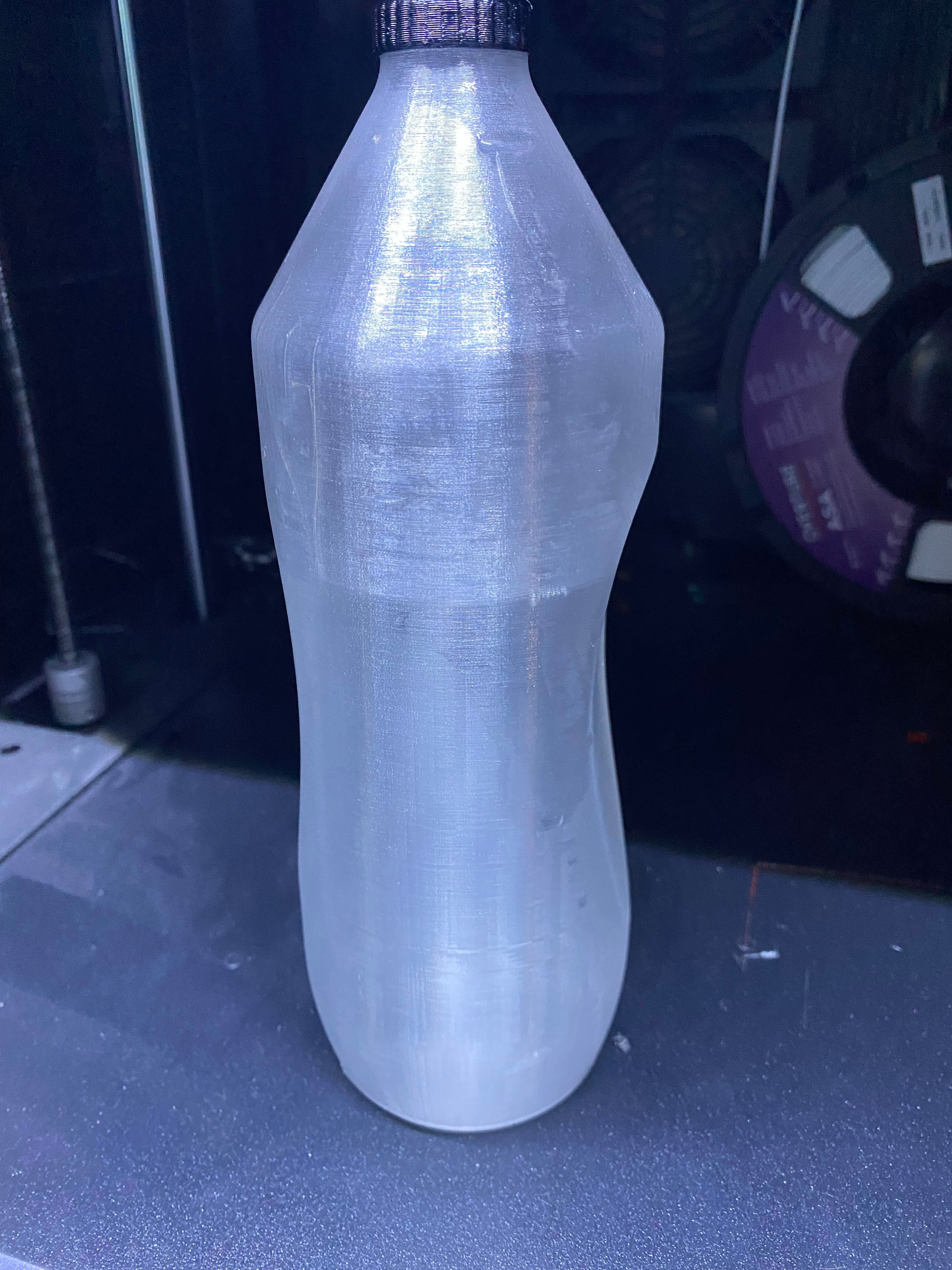

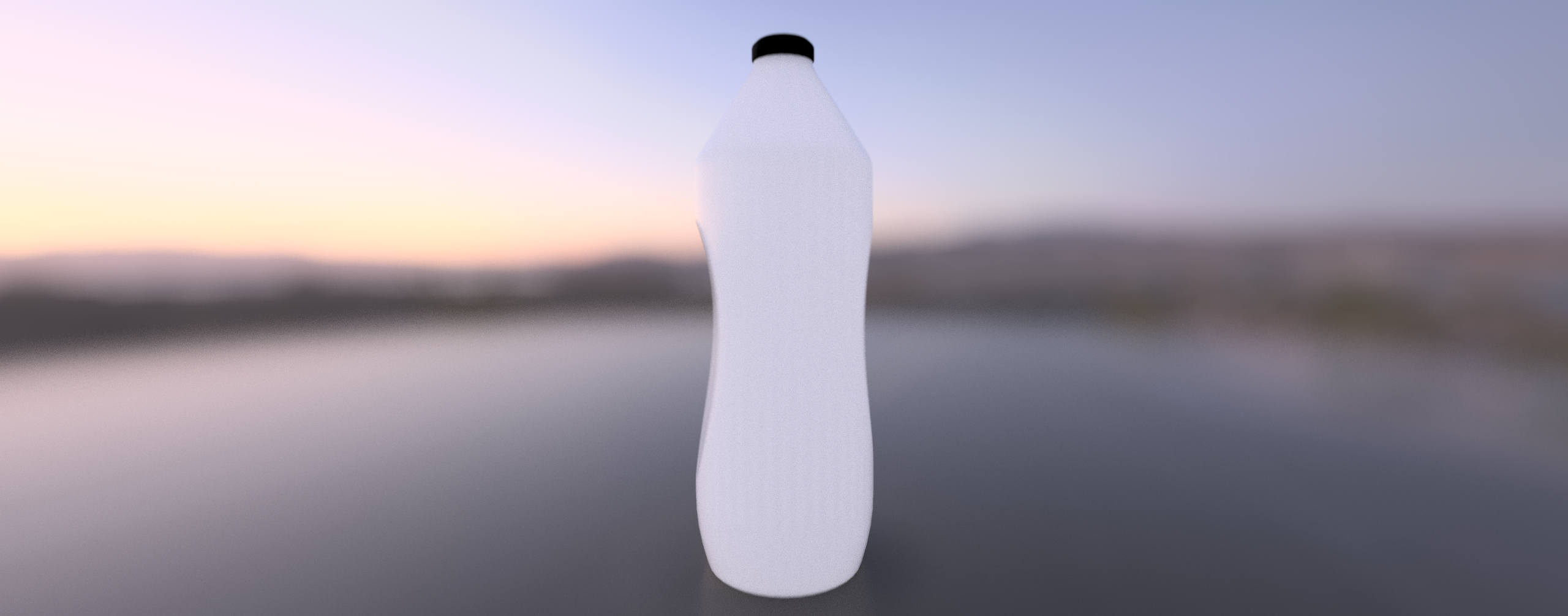

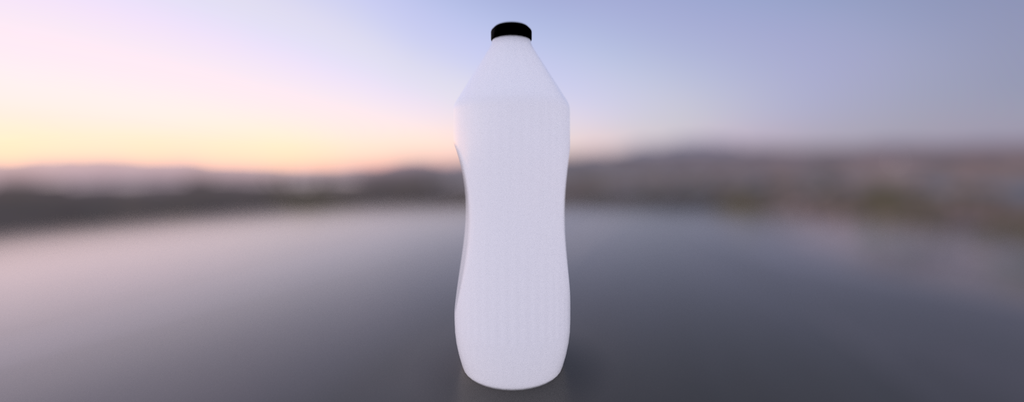

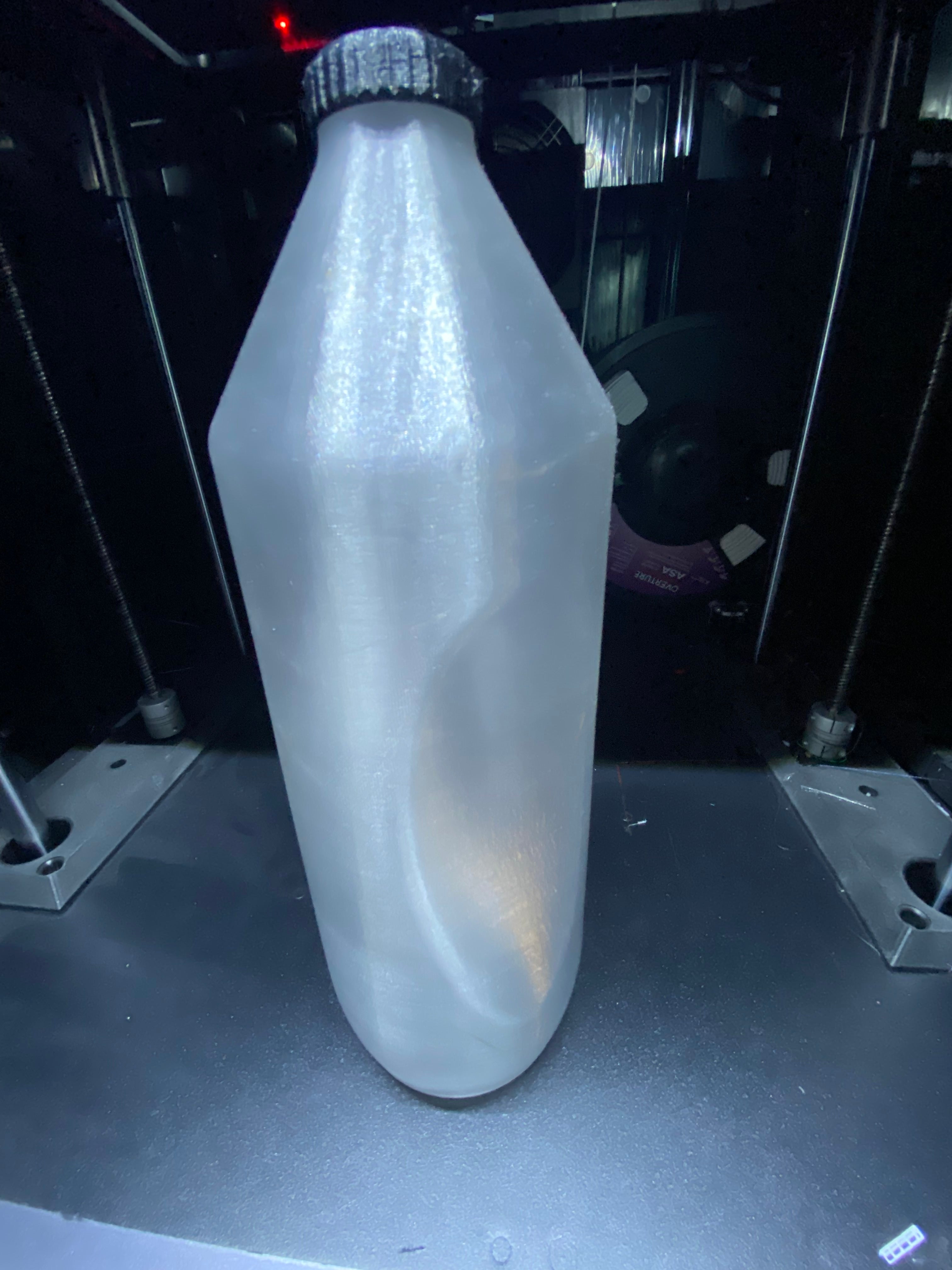

Water Tight Fully 3D Printed Bottle - The MakerBottle - (Vase Mode)

IMPORTANT:
You must use these settings in order to make this bottle work properly and be completely watertight.

You must print the ‘MAKERBOTTLE’ file in PETG filament

1. Nozzle Temp:~240C
2. Bed Temp:~80C
3. Line Width:0.8mm
4. Layer Hight:0.2
5. Speed:35mm/s
6. Set to Spiralize outer contour/Vase mode


You must Print the ‘TPU CAP’ in TPU filament

1. Nozzle Temp:~220C
2. Bed Temp:~60C
3. Line Width:0.4mm
4. Layer Hight:0.2
5. Speed:35mm/s
6. Set to Spiralize outer contour/Vase mode

Notes:

-The TPU Cap is made with what I like to call “Negative Tolerance” where it is slightly smaller than the diameter of the bottle throat, giving it a friendly squeeze on the bottle to keep it watertight even upside down! Scale up or down slightly to get it perfect for your printer.

-Settings can be changed to fit your individual needs but I do recommend them for the best results

-Please share your prints!

Design by Osprey Designs on MakerWorld (license: BY).
