Workmate Dog
$4.99
Sale price
$4.99
Regular price
- Made to order — 3D printed after you buy
- Free shipping on orders over $25
- Quality checked before it ships
- Questions? Contact us · Returns

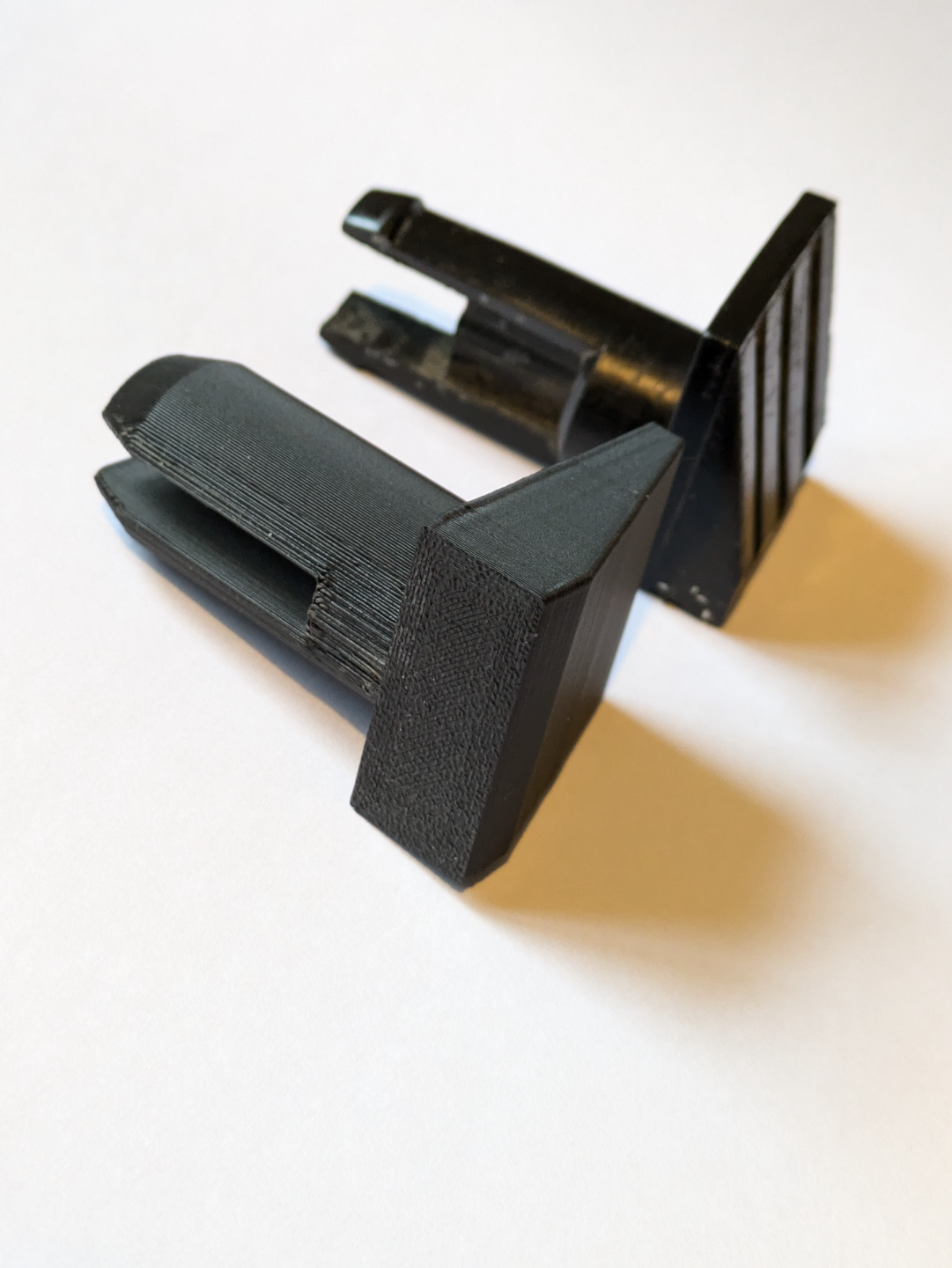

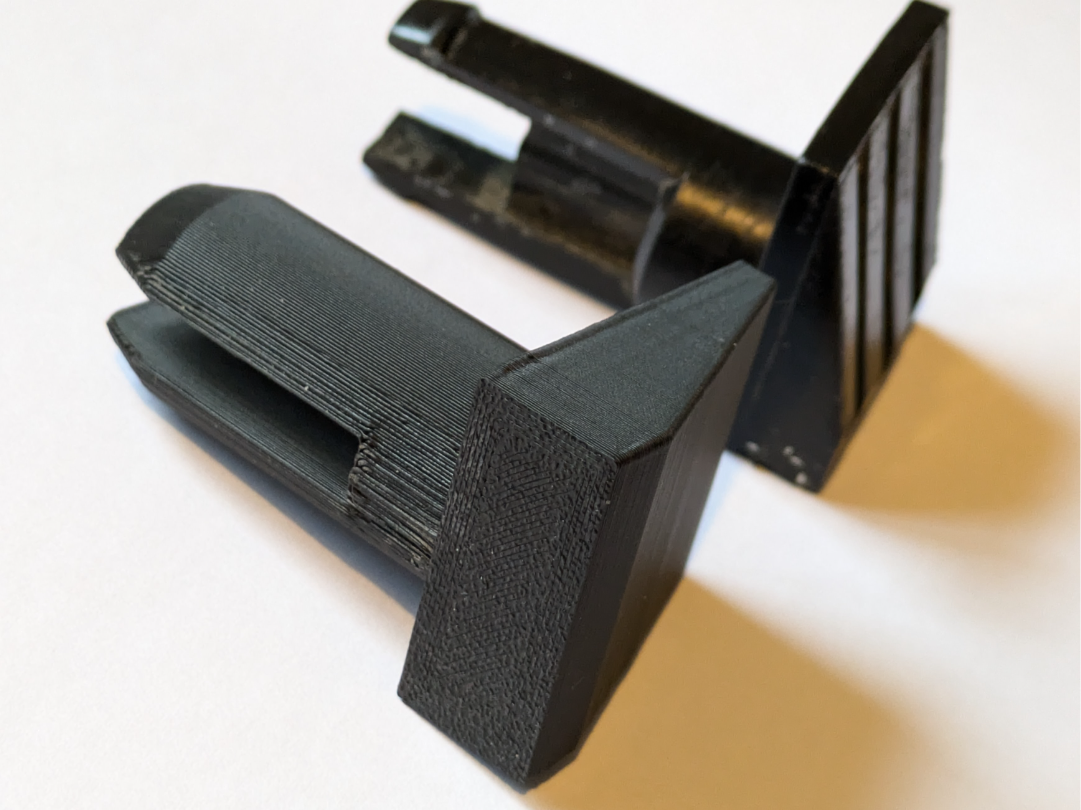

This should print out the same size as the original Black and Decker Workmate dogs. As it is the same dimensions you should be able to mix these in with the originals if you don't need to replace them all.
The print settings are configured for strength so it is not a fast print, but should be reasonably durable.
Based upon the ‘0.20mm Strength @BBL A1 profile’ which has 6 wall thickness.
- support is enabled as the dog is oriented jaw face down to build plate to make best advantage of the layer orientation
- bottom layers are set to ‘8’ to ensure that there is strength in the jaw face.
- infill is 3D honeycomb for strength and sheer resistance for the peg.
Design by Steve Bickle on MakerWorld (license: BY-SA).
