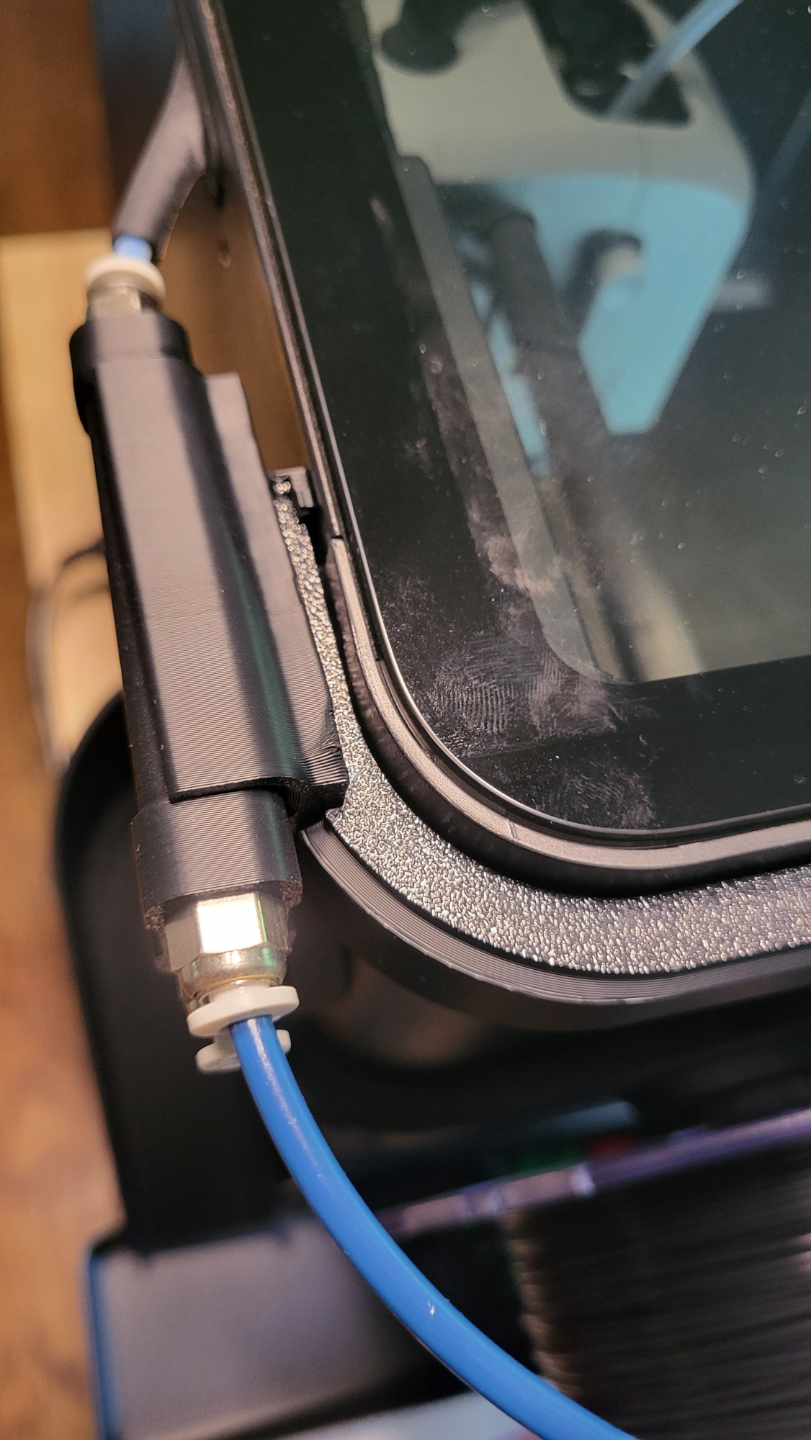

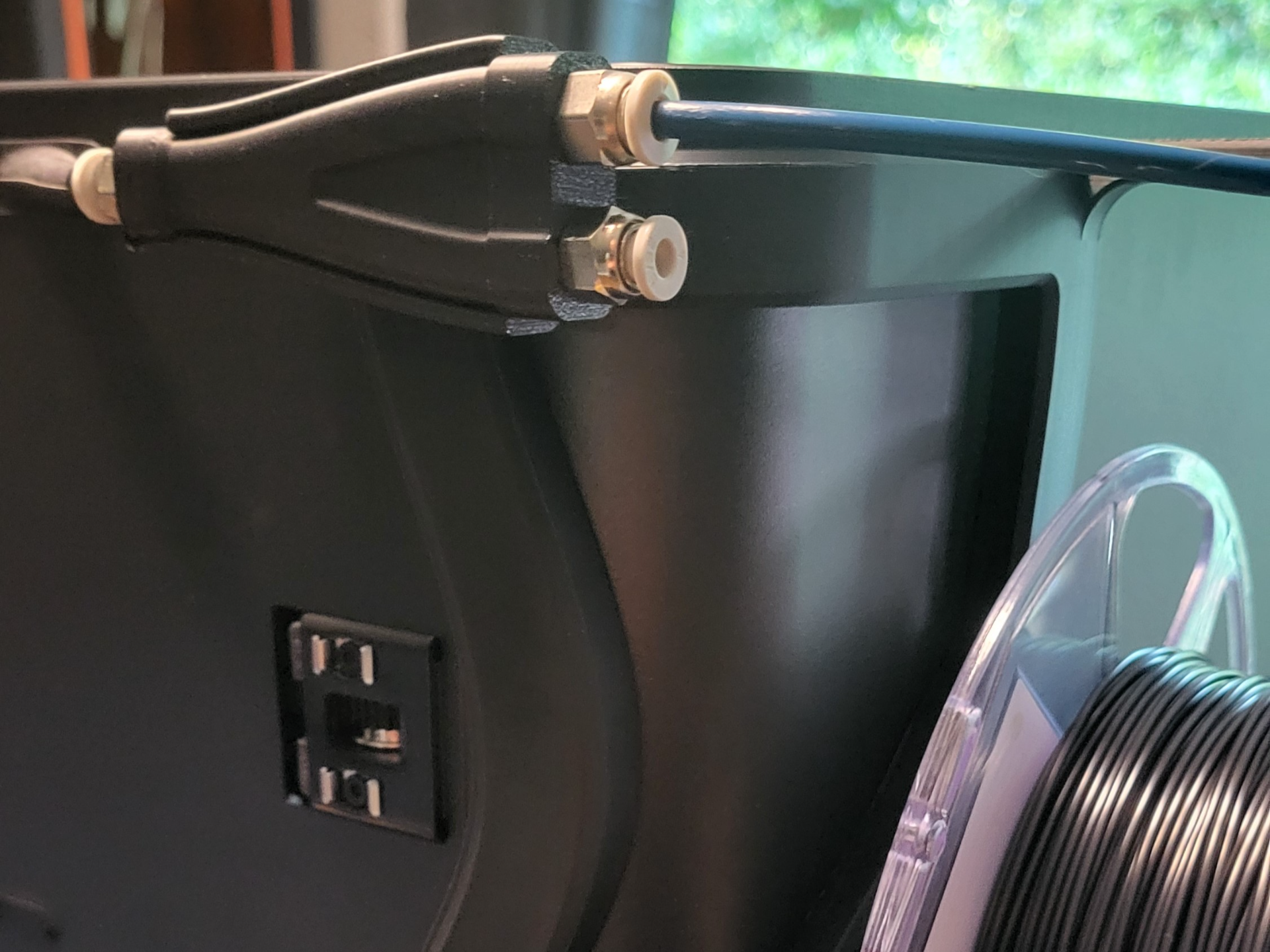

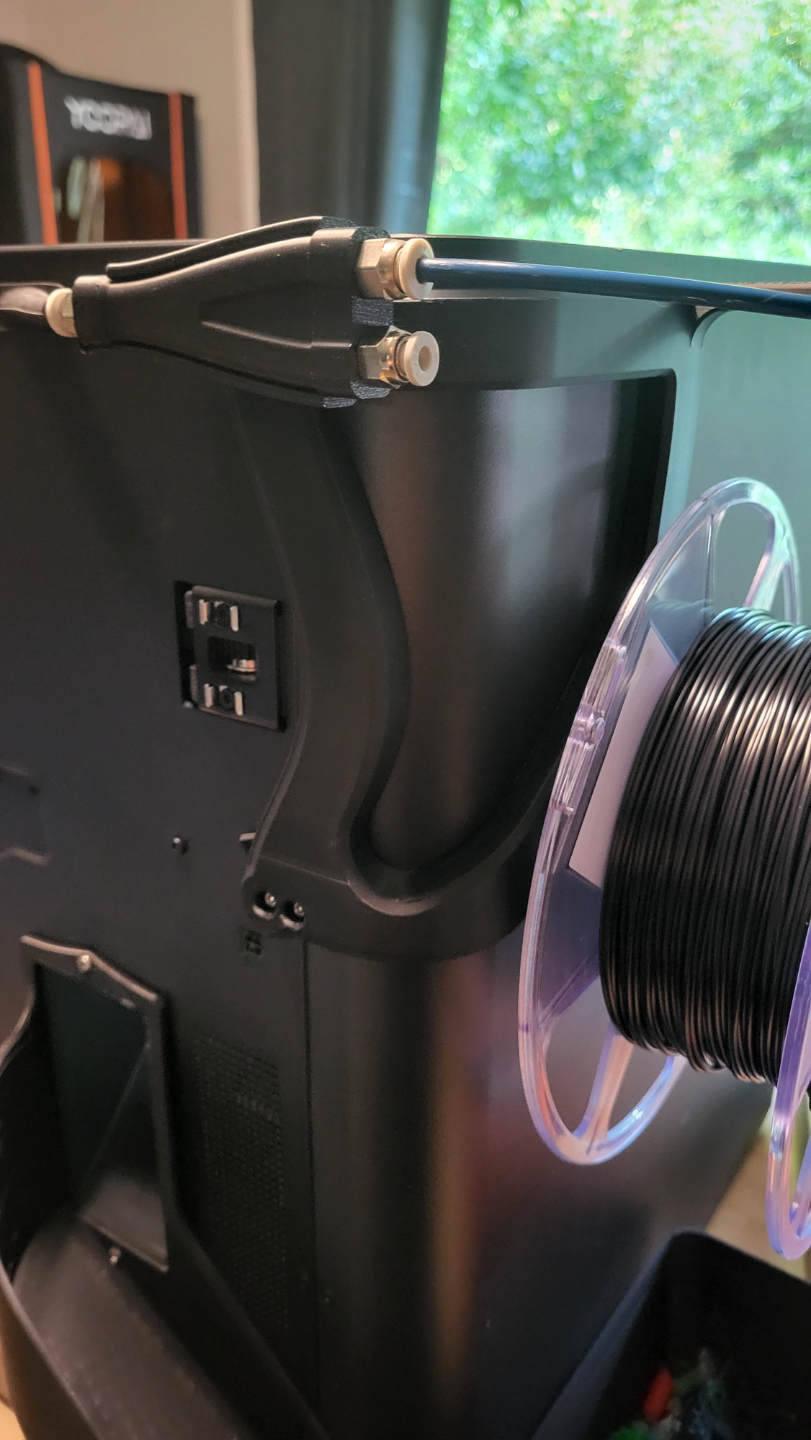

This model is a remix of ineiub's light side mount spool holder that allows the use of the smoothy y splitter mount without causing kinking/bending on the PTFE tube that exits the enclosure.
Link to the original by ineiub:
https://makerworld.com/en/models/190738#profileId-210528
Heres the link to the Smoothy Y-Splitter by @JDJDJD
https://makerworld.com/en/models/18174#profileId-17021
Heres the link to the Smoothy Mount @JDJDJD
https://makerworld.com/en/models/18190#profileId-17064
You will need to use a shorter screw (I used an M3x8) and fortunately the magnet hole on the y splitter mount fits over the screw head.
Same as the original model you will also need the following:
PC4-M10 fitting (x1)
M3x12mm Hex Screws (x2) for the bottom two screws
608RS Bearings (x2)
Hardware changed for this remix:
M3x16mm Hex Screw (x1) to go through the Smoothy Y-Splitter mount and the spool holder
M3x8mm Hex Screw (x1) to go under the Y-Splitter mount
Design by Zag on MakerWorld (license: BY).
