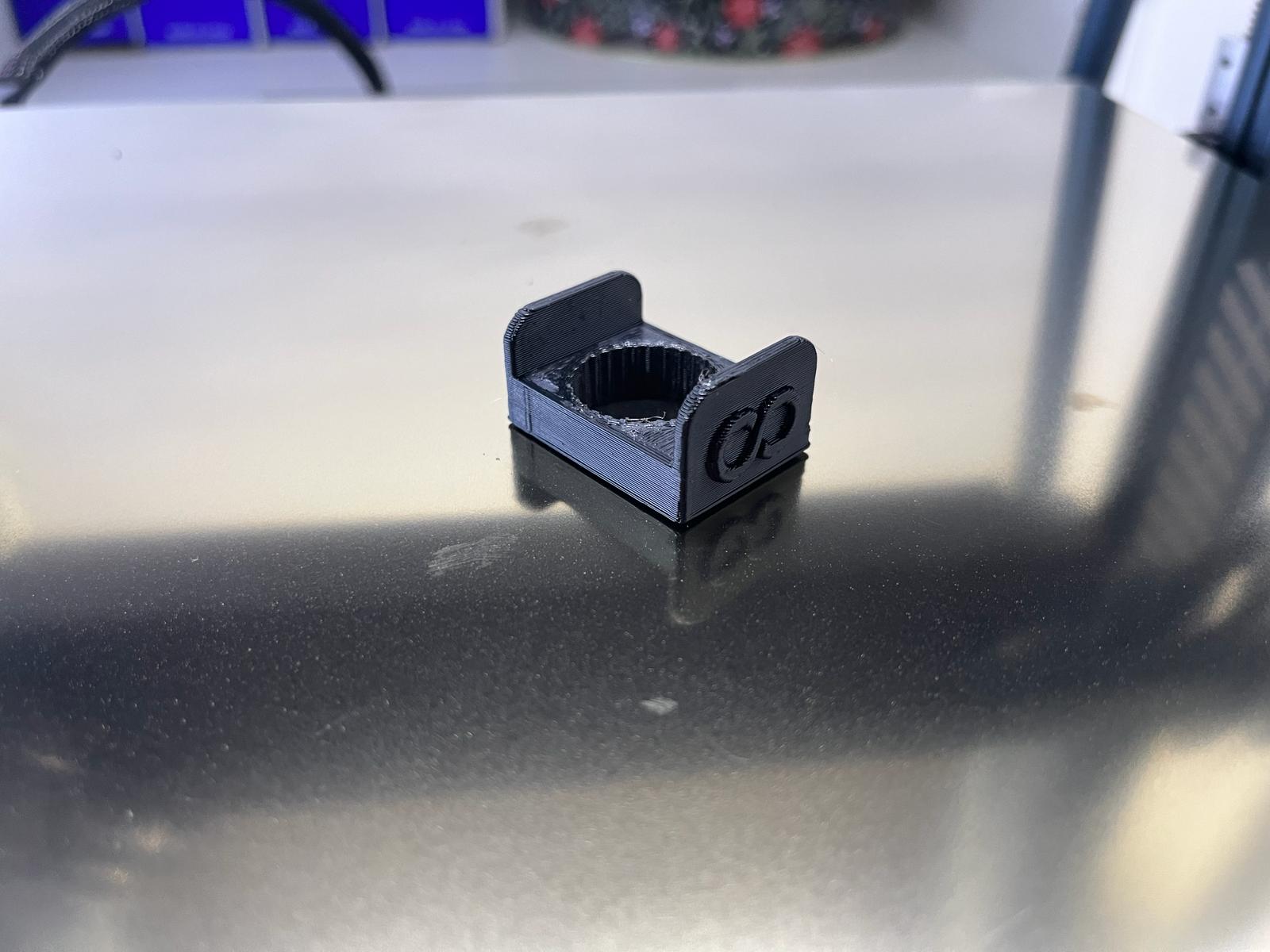

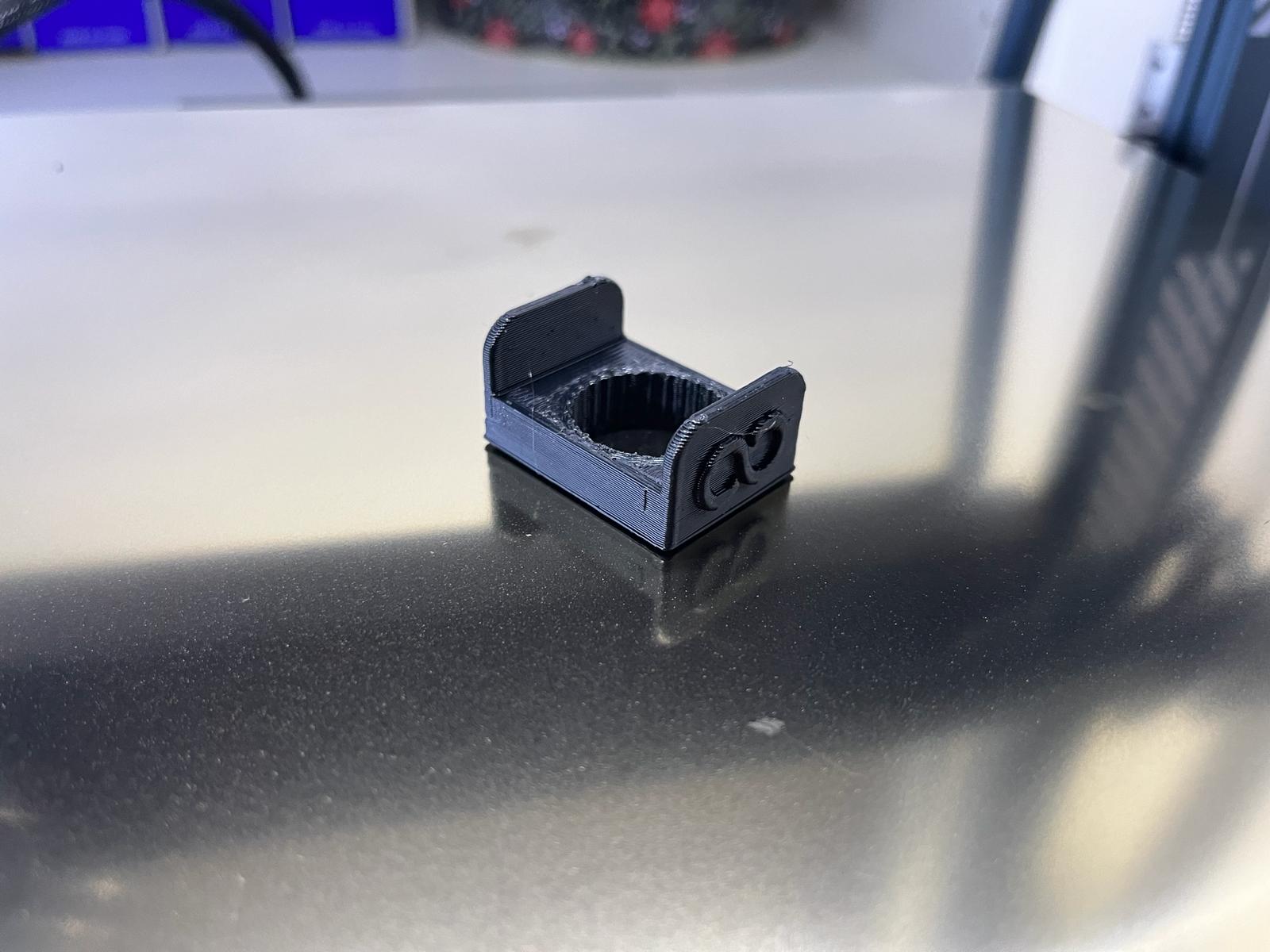

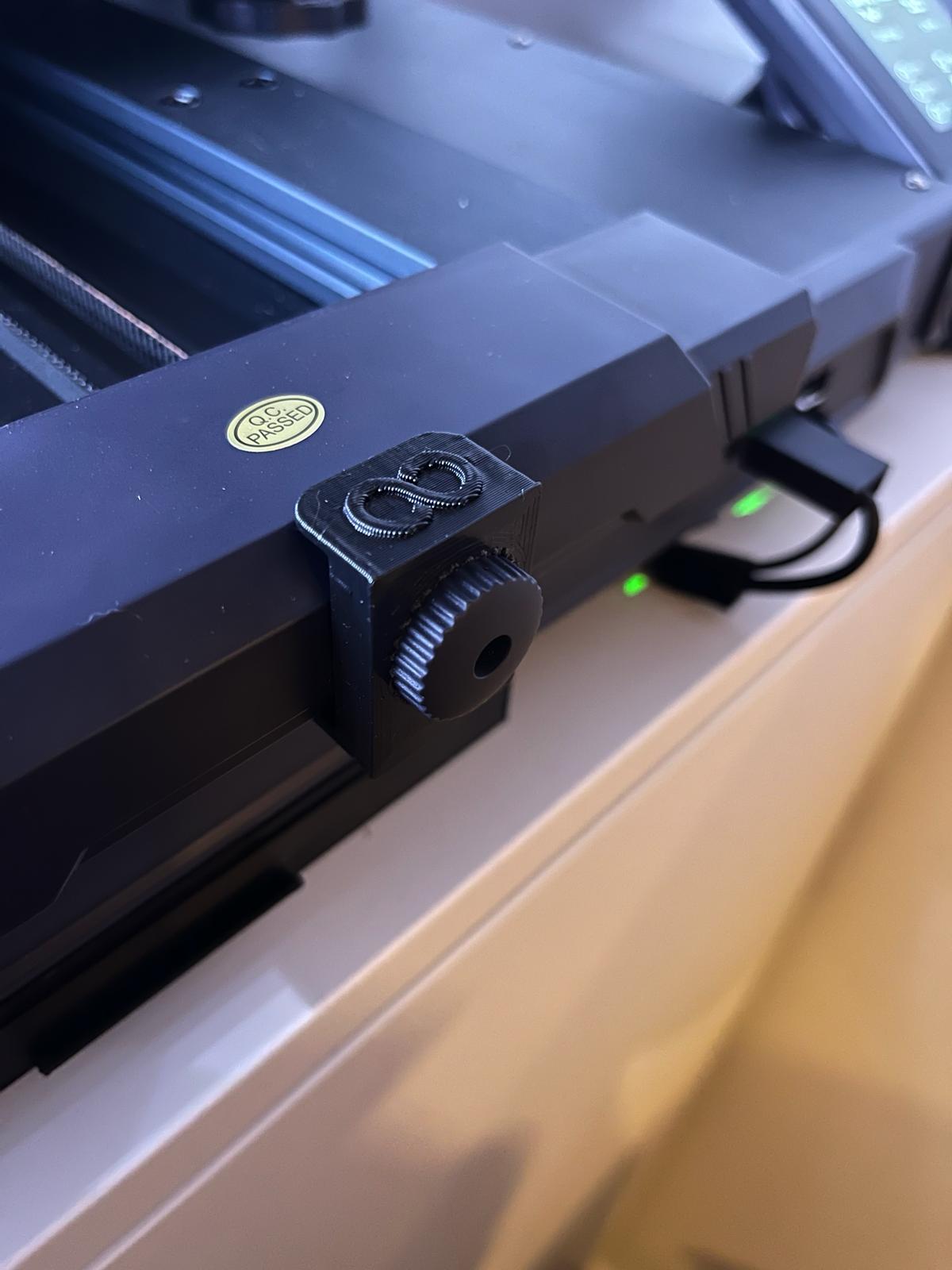

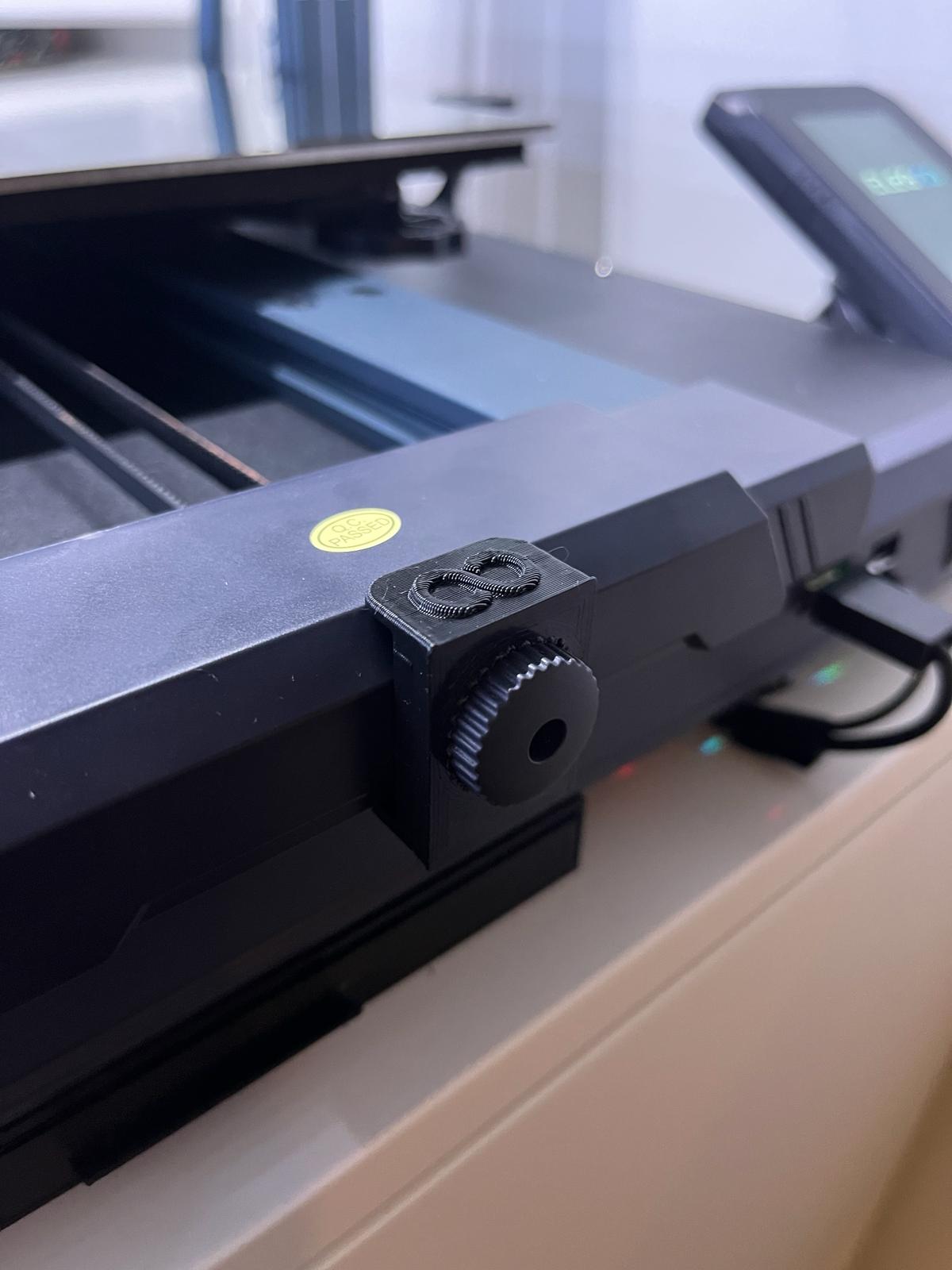

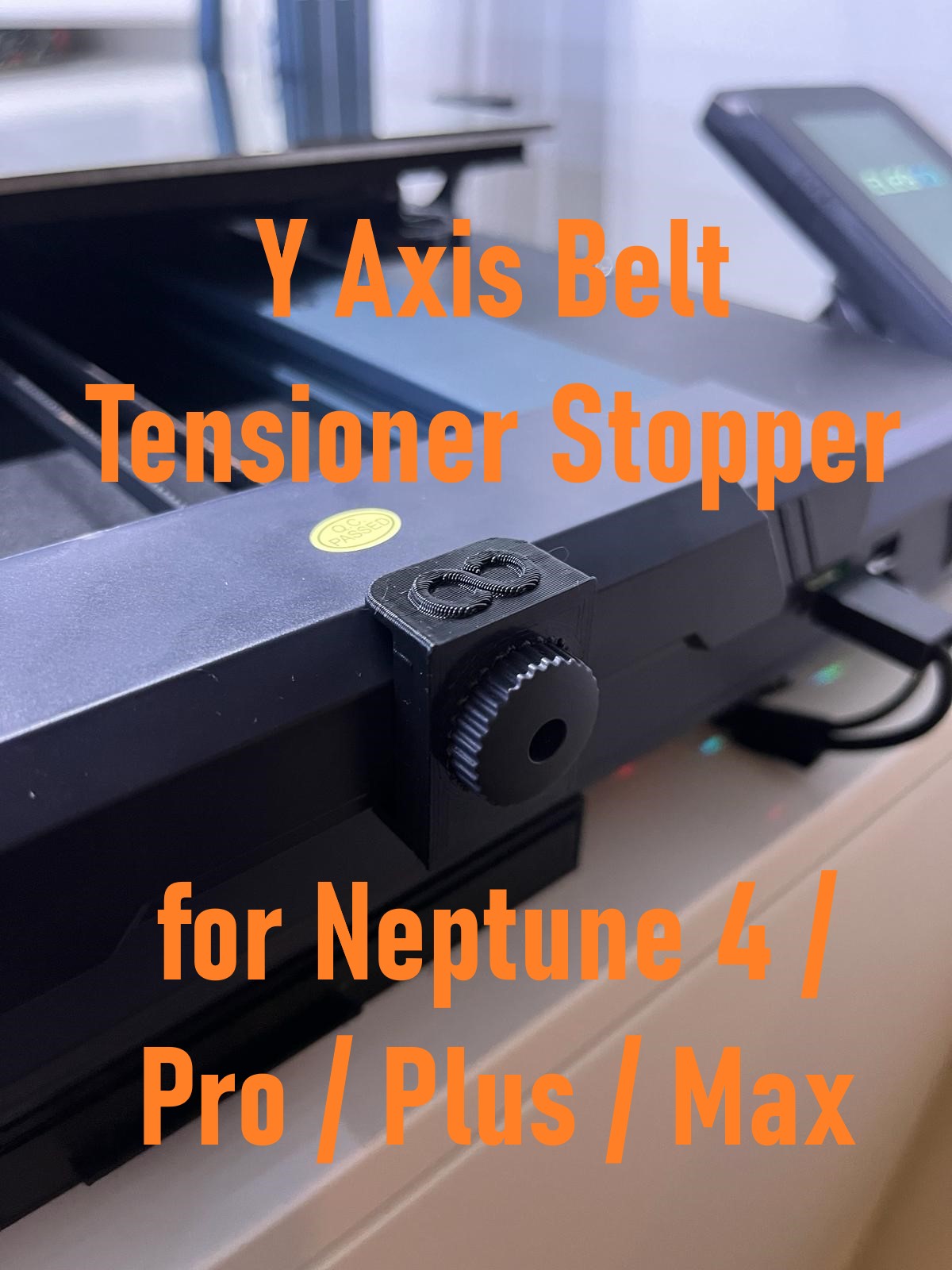

Y Axis Belt Tensioner Stopper Neptune 3 & 4 Series

As I learned, the Y Axis Belt Tensioner Stoppers are absolutely mandatory for the Elegoo Neptune 4 series. The belt tensioner already looses while you print something…

I have therefore adapted the dimensions of the familiar models and given them a fancy elegoo logo.

Please note: There are two versions!
Neptune 4 and 4 Pro are both identical
Neptune 4 Plus and Max are both identical

Also fitting the Elegoo Neptune 3 series!

Printed in PETG in 0.3mm layer height. No supports required.

Do you like my work? I would be very happy if you would support my work on Ko-fi.

Differences of the remix compared to the original

• removed “Y” letter
• added logo from Elegoo
• dimensions adjusted for better fit for the 4 and 4 Pro model

Design by The Kit Card Guy on MakerWorld (license: BY-SA).
